Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 33541H Loading Door, Harvest Gold Appelez-nous -
1 33541L Loading Door, Almond Appelez-nous -
1 33541W Loading Door, White Appelez-nous -
2 33619 Control Hood Rear Panel Appelez-nous -
3 WP90767 Screw,8b-18 X 3/8 Ind   (Replaces: 23962) In-Stock Immediately $ 7.04

4 Sub. To D513139P Screw,10b-16 X 1/2 Hex   (Replaces: 52909) Appelez-nous -
5 Y00000000 See Note Ground Wire, Green Appelez-nous -
6 21903 Strain Relief Appelez-nous -
7 24903 Sticker,disconnect Pow Appelez-nous -
8 33451W Cabinet Top, White Appelez-nous -
8 33451L Cabinet Top, Almond Appelez-nous -
8 33451H Cabinet Top, Harvest Gold Appelez-nous -
9 56534 Barrel,support Appelez-nous -
10 WP27001200 Screw,10-24t X 3/4 Sem   (Replaces: Y31644) Special Order $ 6.91

11 Y00000000 See Note Cabinet Appelez-nous -
12 33516 Use 34776 Appelez-nous -
13 WPW10119828 Screw   (Replaces: 34337) In-Stock Immediately $ 6.47

14 34338 Gasket,hinge Special Order $ 9.22

15 33446 Bushing In-Stock Immediately $ 6.95

16 DE81-10050A Hinge,lid-right   (Replaces: 34325) Special Order $ 33.80

17 36438 Hinge   (Replaces: 34326) Special Order $ 8.06

18 21685 Bumper In-Stock Immediately $ 6.95


    View Diagram in Separate Window     Print Icon   Print Part List

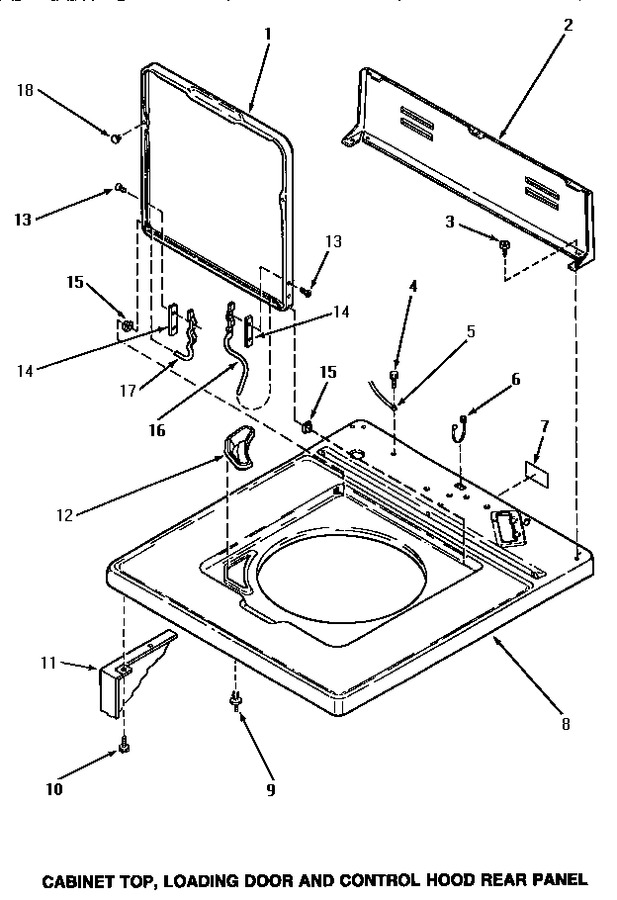

Diagram for AWE951
