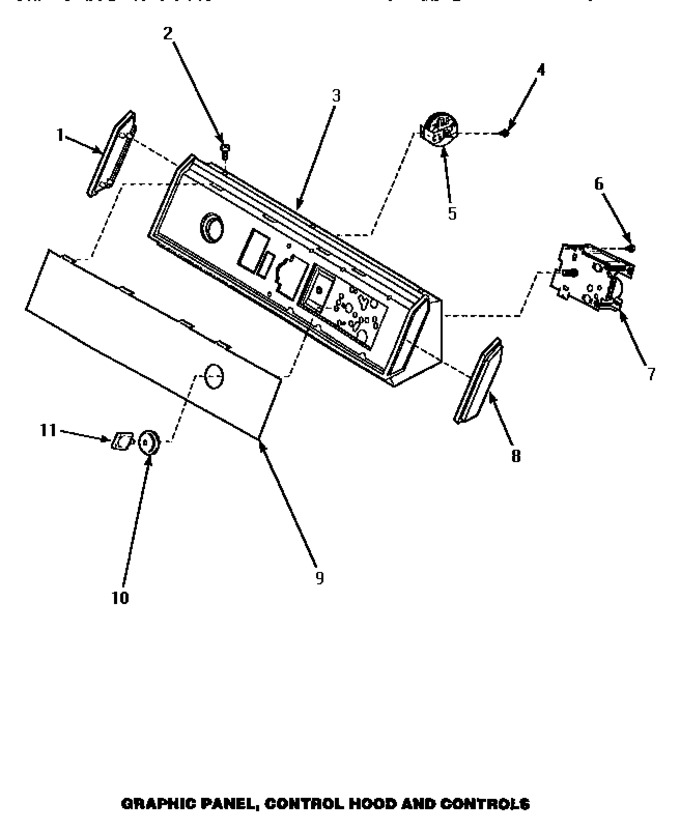

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	34460		Cap,end-lh-black		Appelez-nous	-
2	31752		Screw,no.8abx3/4 Pozidri		Appelez-nous	-
3	31811		Assy,hood & Mounting B		Appelez-nous	-
4	31260		Screw, No.8 X 3/8 Ind H				$ 2.68
5	35012		Switch,pressure-fixed		Appelez-nous	-
6	WP90767		Screw,8b-18 X 3/8 Ind   (Replaces: 23962)			Immediately	$ 7.04
7	31238		Timer,2 Cycle		Appelez-nous	-
8	34459		Cap,end-rh-black		Appelez-nous	-
9	35973		Panel,graphic		Appelez-nous	-
10	33817		Assy,timer Skirt-black		Appelez-nous	-
11	33897		Knob,timer-washer-blac				$ 22.96
	NOTE:		Siphon Break Kit Must Be Installed In Drain Hose If Drain Receptacle Is Lower Than Cabinet Top Of Washer.		Appelez-nous	-
