SELECT A DIAGRAM

01 - 34526p Transmission Assy


02 - 34963 Mixing Valve Assy


03 - Agitator/drive Bell/seal Kit/tub & Hub


04 - Brg Hsg/brake/pulley & Pivot Dome


05 - Cab Top/loading Dr & Ctrl Hood Rear Pan


06 - Drain Hose & Siphon Break


07 - Front Panel, Base Assy & Cabinet Assy

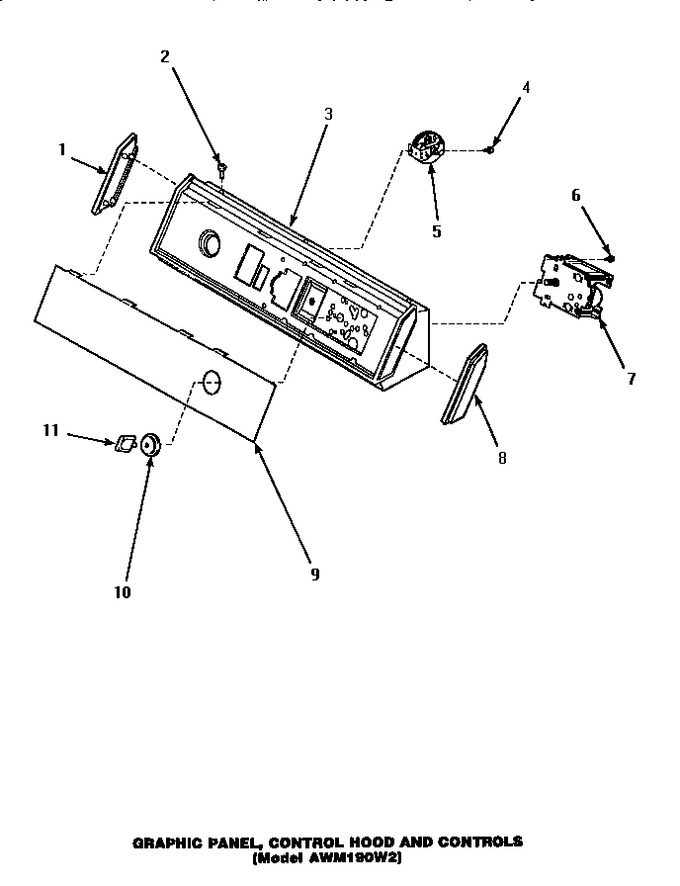

08 - Graphic Panel, Control Hood & Controls


09 - Inlet/fill Hose & Mixing Vlv Mtg Brkt


10 - Mix Vlv/mtr Conn Blks/term & Extractor


11 - Motor, Mtg Brkt, Belt, Pump & Idler Assy


12 - Outer Tub, Cover And Pressure Hose


13 - Out-of-balance Switch


14 - Power Cord & Terminals


15 - Special Tools


16 - Special Tools


17 - Transmission Assy & Balance Ring


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	34460		Cap,end-lh-black		Appelez-nous	-
2	31752		Screw,no.8abx3/4 Pozidri		Appelez-nous	-
3	31811		Assy,hood & Mounting B		Appelez-nous	-
4	31260		Screw, No.8 X 3/8 Ind H				$ 2.68
5	35012		Switch,pressure-fixed		Appelez-nous	-
6	WP90767		Screw,8b-18 X 3/8 Ind   (Replaces: 23962)			Immediately	$ 7.04
7	31238		Timer,2 Cycle		Appelez-nous	-
8	34459		Cap,end-rh-black		Appelez-nous	-
9	DE81-05654A		Panel, Graphics   (Replaces: 36622)				$ 108.42
10	33817		Assy,timer Skirt-black		Appelez-nous	-
11	33897		Knob,timer-washer-blac				$ 22.96

    View Diagram in Separate Window       Print Part List
