SELECT A DIAGRAM

01 - 34526 Transmission Assy


02 - Agitator/drive Bell/seal Kit/tub & Hub


03 - Brg Hsg/brake/pulley & Pivot Dome


04 - Cab Top/loading Dr & Ctrl Hood Rear Pan

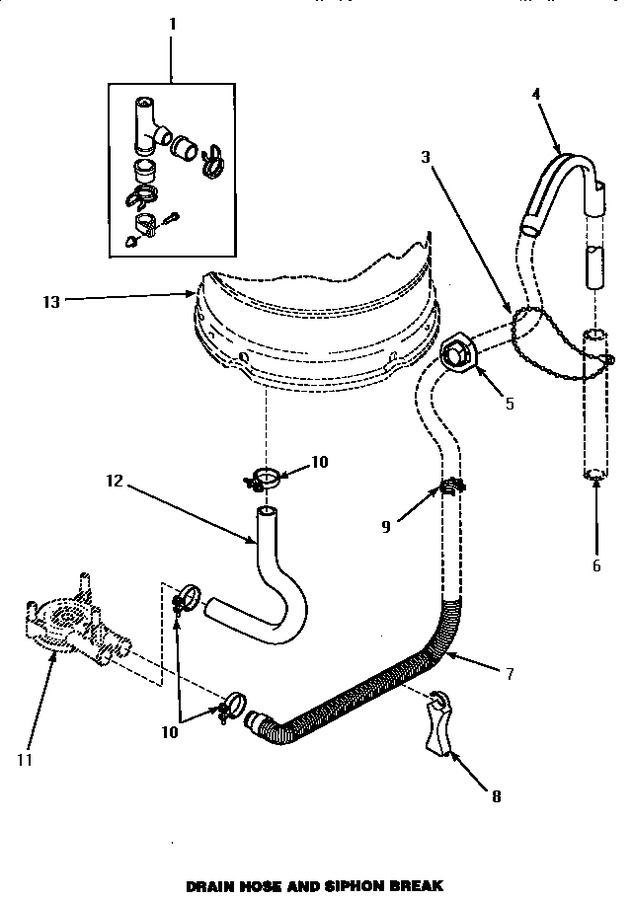

05 - Drain Hose & Siphon Break


06 - Front Panel, Base & Cabinet Assy


07 - Graphic Panel, Control Hood & Controls


08 - Inlet/fill Hose & Mixing Vlv Mtg Brkt


09 - Mixing Valve Assy


10 - Mixing Valve, Motor Conn Blocks & Term


11 - Motor, Mtg Brkt, Belt, Pump & Idler Assy


12 - Outer Tub, Cover & Pressure Hose


13 - Out-of-balance Switch


14 - Power Cord & Terminals


15 - Special Tools


16 - Special Tools (continued)


17 - Transmission Assy & Balance Ring


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	76660		Siphon Kit   (Replaces: 562P3)			Immediately	$ 119.93
3	33489		Strap, Standpipe Bead		Appelez-nous	-
4	33615		Sleeve, Drain Hose				$ 8.35
5	32219		Relief, Strain				$ 6.95
6	Y00000000		See Note Standpipe		Appelez-nous	-
7	WP40053901		Drain Hose   (Replaces: 34502)			Immediately	$ 61.94
8	35487		Support,hose		Appelez-nous	-
9	36014		Clip, Retainer-hose				$ 6.95
10	WP285655		Hose Clamp   (Replaces: 35384)			Immediately	$ 7.55
11	Y00000000		See Note Pump Assembly		Appelez-nous	-
12	35752		Hose,tub To Pump-ddp		Appelez-nous	-
13	Y00000000		See Note Outer Tub		Appelez-nous	-
NI	451P3		Drain Hose Extension Kit   (Replaces: 406P3)			Immediately	$ 163.80

    View Diagram in Separate Window       Print Part List
