SELECT A DIAGRAM

01 - 34526p Transmission Assy


02 - Agitator/drive Bell/seal Kit/tub & Hub


03 - Agitator/drive Bell/seal Kit/tub & Hub


04 - Brg Hsg/brake Pulley & Pivot Dome


05 - Cab Top/loading Dr & Ctrl Hood Rear Pan


06 - Drain Hose And Siphon Break


07 - Front Panel, Base Assy And Cabinet Assy


08 - Graphic Panel, Control Hood And Controls


09 - Graphic Panel, Control Hood And Controls


10 - Graphic Panel, Control Hood And Controls


11 - Graphic Panel, Control Hood And Controls


12 - Graphic Panel, Control Hood And Controls


13 - Inlet Hose/fill Hose/mixing Vlv Mtg Brkt


14 - Mixing Valve & Motor Conn Blocks, Term


15 - Motor, Mtg Brkt, Belt, Pump & Idler Assy


16 - Outer Tub, Cover And Pressure Hose


17 - Out-of-balance Switch


18 - Power Cord And Terminals


19 - Special Tools


20 - Special Tools


21 - Terminals


22 - This Page Intentionally Left Blank


23 - Transmission Assy And Balance Ring

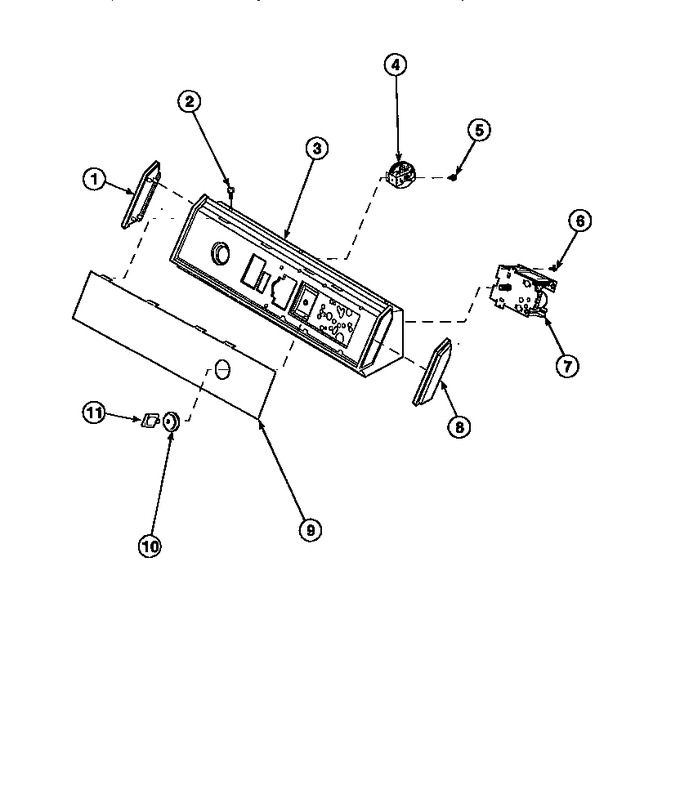

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31249		Cap,end-l.h.-chrome		Appelez-nous	-
2	32993		Screw,no.8abx3/4 Pozidri		Appelez-nous	-
3	36295		Ass`y, Hood & Mtg Plate		Appelez-nous	-
3	37845		Assy, Cont Panel		Appelez-nous	-
4	39035P		Pressure Switch   (Replaces: 35010)				$ 106.41
5	31260		Screw, No.8 X 3/8 Ind H				$ 2.68
6	21300		Switch,temperature				$ 45.99
6	35115		Switch,temperature 3 P				$ 30.67
7	WP90767		Screw,8b-18 X 3/8 Ind   (Replaces: 23962)			Immediately	$ 7.04
8	31238		Timer,2 Cycle		Appelez-nous	-
9	31248		Cap,end-r.h.-chrome		Appelez-nous	-
10	36629		Panel, Graphics		Appelez-nous	-
11	33818		Timer Knob Skirt		Appelez-nous	-
12	33898		Timer Knob White		Appelez-nous	-
13	57584		Nut		Appelez-nous	-
14	WP36701W		Assy,knob-rotary-white   (Replaces: 33688)			Immediately	$ 44.31

    View Diagram in Separate Window       Print Part List
