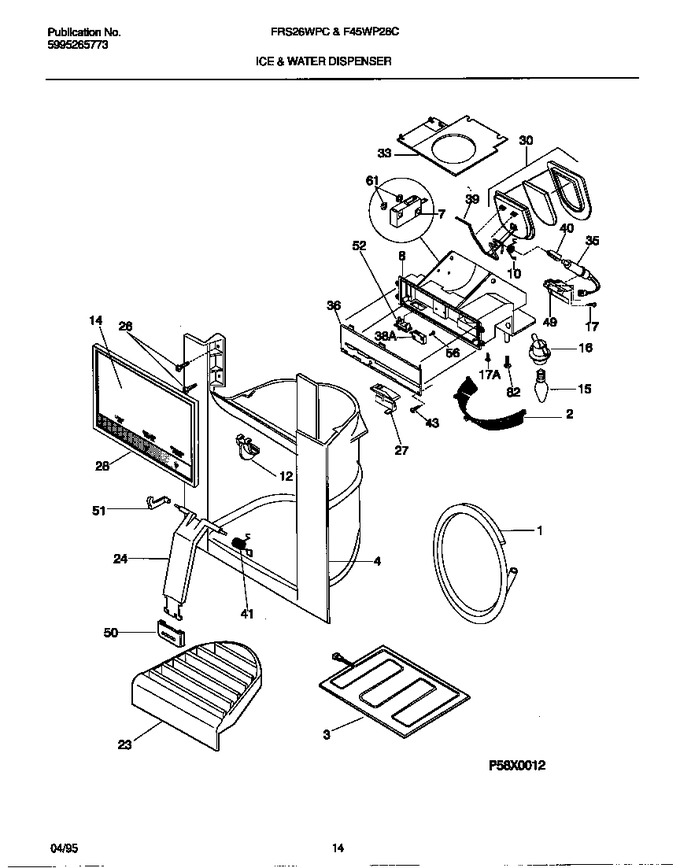

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	218232500		Auger-ice		Appelez-nous	-
2	215732101		Deflector-ice Disp,white		Appelez-nous	-
3	215484300		Heater-door Housing				$ 40.85
3	218232300		Cam-drive				$ 32.23
4	215922301		Housing-dispenser, White				$ 140.86
5	215748105		Ring-snap		Appelez-nous	-
6	215752800		Drum-ice Disp		Appelez-nous	-
7	215421603		Front-ice Container		Appelez-nous	-
7	218284800		Switch-actuator,micro		Appelez-nous	-
8	218432302		Module-dispenser		Appelez-nous	-
9	215419700		Gear-auger,18 Teeth		Appelez-nous	-
10	218209800		Spring,dispenser Door		Appelez-nous	-
10	241726501		Bar-drive   (Replaces: 215285000)				$ 58.82
10	218232800		Bar-drive				$ 62.61
11	215755200		Gear-mtg Plate		Appelez-nous	-
12	215627201		Knob - Selector, White		Appelez-nous	-
13	218285200		Gate				$ 40.93
14	215419900		Bearing		Appelez-nous	-
14	215475100		Label, Module Cover, White		Appelez-nous	-
15	5303001179		Light Bulb/lamp,40 W		Appelez-nous	-
15	218284900		Light Bulb / Lamp, 4w, 115v		Appelez-nous	-
16	240548901		Socket-light/lamp   (Replaces: 215284900)				$ 63.70
16	218906802		Socket-light/lamp   (Replaces: 5308000815)				$ 17.72
17	215794400		Screw,6 X 1/4		Appelez-nous	-
17	215754800		Bar-breaker				$ 85.68
20	215285301		Cover-motor		Appelez-nous	-
21	241726501		Nut-drive   (Replaces: 215285100)				$ 58.82
23	215447001		Drip Tray, White				$ 63.53
24	215918001		Actuator, White		Appelez-nous	-
25	215421400		Screw,hilo ,10 X 3/4				$ 8.19
26	215503203		Screw, Cr Pan Head, 10, 16 X 1/2, Special/hi, Lo   (Replaces: 215503200)			Immediately	$ 7.09
27	218432600		Cam-slide				$ 53.97
27	215748400		Bearing-auger		Appelez-nous	-
28	215447101		Cover-module, White		Appelez-nous	-
29	215757501		Shaft-drive,auger		Appelez-nous	-
30	215753600		Door Assy-ice,w/gasket,insul		Appelez-nous	-
30	215757300		Screw,6-32 X 1/2		Appelez-nous	-
33	218379901		Heater-disp Throat				$ 24.43
35	218284700		Heat Motor,115v		Appelez-nous	-
36	218432400		Cover-selector Sw		Appelez-nous	-
38	218479900		Switch-micro				$ 57.65
38	218270100		Plate-crusher Mtg				$ 61.91
39	215757000		Screw,10- X 2		Appelez-nous	-
39	218284600		Wire-ice Door		Appelez-nous	-
40	215363000		Cover-mtr Mtg Brkt		Appelez-nous	-
40	218284500		Yoke-heat Motor				$ 35.01
41	218270200		Cover-crusher Assy		Appelez-nous	-
41	215917800		Spring-actuator				$ 10.03
43	215635000		Plug-decorative,ice Container		Appelez-nous	-
43	215760300		Screw,4 X 3/8				$ 9.35
44	218359200		Screw,pan Head, 8-32 X .25		Appelez-nous	-
49	215794000		Bracket-heat Motor				$ 34.81
50	215918101		Pad, Actuator, White		Appelez-nous	-
51	215922200		Cam-switch				$ 13.28
52	218497200		Switch-light/lamp, Rocker Type		Appelez-nous	-
56	218434300		Screw-micro Switch, Pan Head, 4-24 X 9/16		Appelez-nous	-
61	215766000		Ring-retainer,micro Switch				$ 34.40
82	215296300		Screw,plask H/l,6 X 3/8		Appelez-nous	-
*36971	215781700		Clip-tube		Appelez-nous	-
*36972	218493601		Harness-wiring, Disp		Appelez-nous	-
*36973	215781700		Clip-tube		Appelez-nous	-
17A	215840700		Screw,truss Head,6-20 X 3/8		Appelez-nous	-
17B	215923400		Washer-flat (not Illustrated)		Appelez-nous	-
18A	5304462594		Motor Auger   (Replaces: 215285400)				$ 314.22
18B	218329200		Harness-wiring, Auger Motor (not Illustrated)		Appelez-nous	-
1A	215294101		Tube-water Inlet,formed,plastic,dispenser				$ 91.25
1B	5318582501		Tube-water Inlet, 93``, Plastic, Cut To Size		Appelez-nous	-
23A	215755300		Bracket-gear Mtg		Appelez-nous	-
23B	215755700		Ring-retainer (not Illustrated)		Appelez-nous	-
23C	215755800		Stud (not Illustrated)		Appelez-nous	-
4A	218216800		Container-ice		Appelez-nous	-
4B	218363200		Label-ice Container (not Illustrated)		Appelez-nous	-
