SELECT A DIAGRAM

01 - (ßÐh€ X&®l< O«ÿÿ


02 - (ßÐh€ X&®l< O«ÿÿ


03 - 34526p Transmission Assy


04 - Agitator/drive Bell/seal Kit/tub & Hub


05 - Brg Hsg/brake/pulley & Pivot Dome


06 - Cab Top/loading Dr & Ctrl Hood Rear Pan


07 - Front Panel, Base Assy & Cabinet Assy


08 - Graphic Panel, Control Hood & Controls

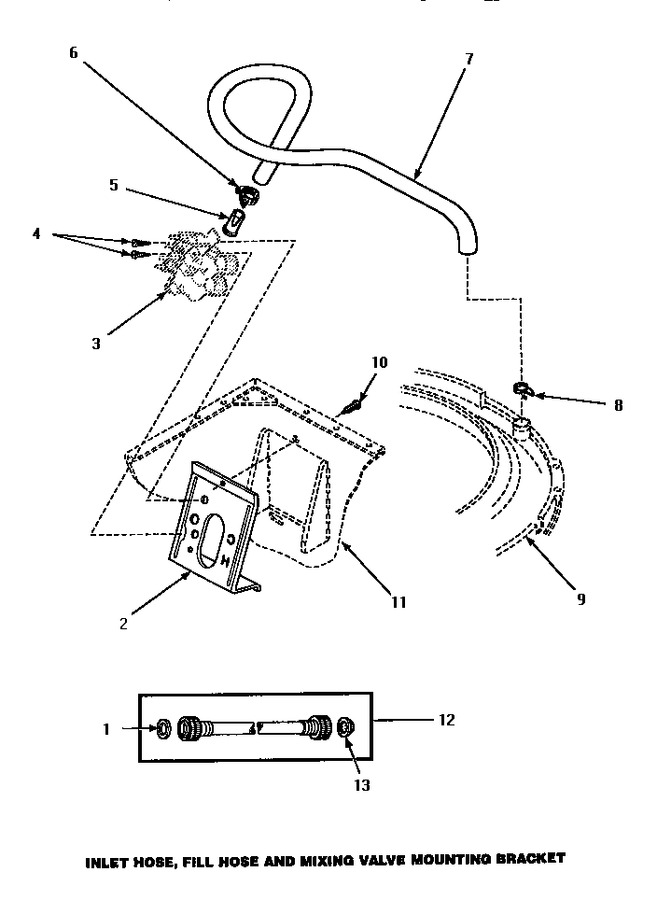

09 - Inlet/fill Hose & Mixing Vlv Mtg Brkt


10 - Mix Vlv/mtr Conn Blks/term & Extractor


11 - Motor, Mtg Brkt, Belt, Pump & Idler Assy


12 - Outer Tub, Cover And Pressure Hose


13 - Out-of-balance Switch


14 - Power Cord & Terminals


15 - Special Tools


16 - Special Tools


17 - Transmission Assy & Balance Ring


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	20290		Washer, 19/32 Idx1.031		Appelez-nous	-
2	34972		Mixing Valve Mounting Bracket		Appelez-nous	-
3	Y00000000		See Note Mixing Valve Assembly -- (see Mixing Valve Assembly Page)		Appelez-nous	-
4	WP90767		Screw,8b-18 X 3/8 Ind   (Replaces: 23962)			Immediately	$ 7.04
5	34500		Preventor, Backflow			Immediately	$ 6.95
6	36801		Clamp, Hose			Immediately	$ 9.22
7	38155		Hose,mix Valve To Tub   (Replaces: 35874)				$ 26.69
8	29210		Hose Clamp				$ 6.95
9	Y00000000		See Note Outer Tub Cover Assy -- (see Outer Tub, Cover And Pressure Hose Page)		Appelez-nous	-
10	WP27001200		Screw   (Replaces: 33562)				$ 6.91
11	Y00000000		See Note Cabinet Assy -- (see Front Panel, Base And Cabinet Assy Page)		Appelez-nous	-
12	WP89503		Hose,water Inlet 5 Feet   (Replaces: 28330P)			Immediately	$ 21.68
13	28605		Washer, Filter		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
