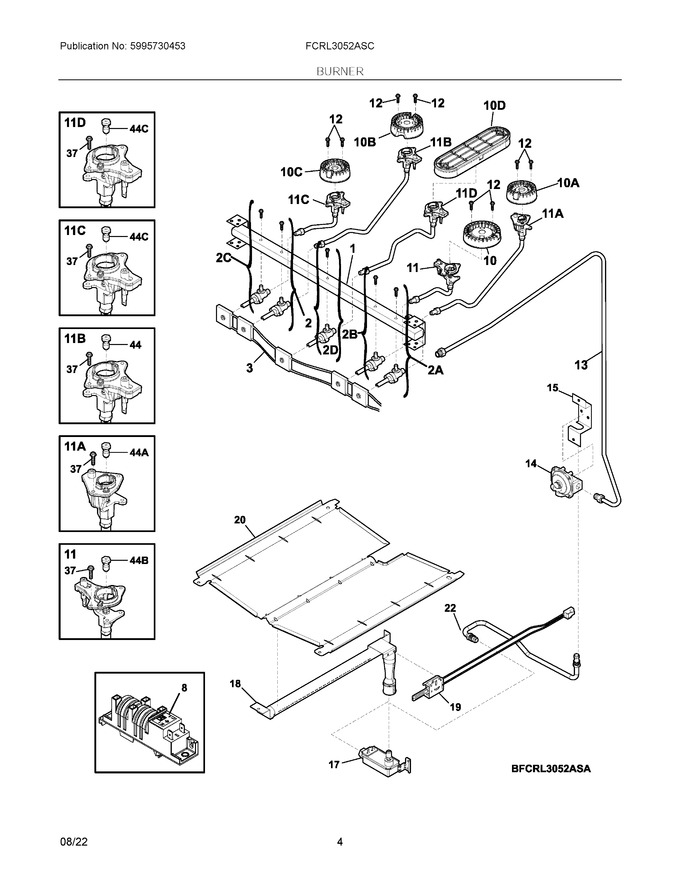

03 - Burner


04 - Body


05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304513540		Manifold, Pipe				$ 99.35
2	5304506554		Valve, Burner, 12k Lp, White Stem		Appelez-nous	-
3	5304527991		Harness, Ignition				$ 98.60
8	808608804		Spark Module			Immediately	$ 76.06
10	316438400		Burner, Sealed, 17k			Immediately	$ 83.42
11	316540801		Ignitor/orifice Assy., Top Burner, Rear, 5k, W/holder		Appelez-nous	-
12	316540900		Screw, Burner, Head Mtg, (8)			Immediately	$ 15.17
13	316489101		Tube-manifold Supply			Immediately	$ 102.06
14	5304516762		Regulator, Pressure, Lp			Immediately	$ 82.22
15	316091600		Bracket, Regulator				$ 73.56
17	316572801		Valve, Safety		Appelez-nous	-
18	316404400		Burner, Oven				$ 109.10
19	316489403		Ignitor, Bake   (Replaces: 5304508786)			Immediately	$ 113.15
20	5304519024		Baffle, Oven Burner			Immediately	$ 80.39
22	5304520704		Tube, Valve, 3/8				$ 37.16
37	316240600		Screw, Assy Mtg, (8), Ignitor/orifice			Immediately	$ 12.13
44	316527507		Orifice, Top Burner, 17k Lp				$ 10.62
10A	316438200		Burner, Sealed, 5k			Immediately	$ 56.70
10B	316438000		Burner, Sealed, 12k				$ 67.81
10C	316558300		Burner, Sealed, 9.5k			Immediately	$ 52.45
10D	316559300		Burner, Sealed, 9.5k, Oval				$ 177.19
11A	316540701		Ignitor/orifice Assy., Top Burner, Front		Appelez-nous	-
11B	316536613		Ignitor/orifice Assy., Top Burner, 12k Lp, Left Rear, W/holder, Tube		Appelez-nous	-
11C	316536606		Ignitor/orifice Assy., Top Burner, 9.5k Lp, Left Front, W/holder, Tube		Appelez-nous	-
11D	316536624		Ignitor/orifice Assy., Top Burner, 9.5k Lp, Center, W/holder, Tube		Appelez-nous	-
2A	5304506552		Valve, Burner, 5k Lp, Green Stem		Appelez-nous	-
2B	5304507061		Valve, Burner, 16k Lp, Black Stem		Appelez-nous	-
2C	5304506553		Valve, Burner, 9.5k Lp, Blue Stem		Appelez-nous	-
2D	5304507062		Valve, Burner, Oval Lp, Red Stem		Appelez-nous	-
44A	316527505		Orifice, Top Burner, 5k Lp				$ 12.89
44B	316527503		Orifice, Top Burner, 12k Lp		Appelez-nous	-
44C	316527501		Orifice, Top Burner, 9.5k Lp				$ 18.43
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	316260800		Screw-shoulder, W/shoulder, #8-18 X 1/2				$ 13.46
NI	5304494425		Harness, Ignitor Module				$ 86.45
NI	316215600		Screw, Valve Mtg., 1/4 - 20			Immediately	$ 14.18
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NIA	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NIA	316498100		Shield, Wire, Safety Valve				$ 15.17
NIA	316021104		Screw, Hex, 8-18 X 3/8, Nick, (3), Regulator Brkt				$ 7.79
NIB	5304505563		Wire, Ground, Spark Module, W/connector			Immediately	$ 16.23
