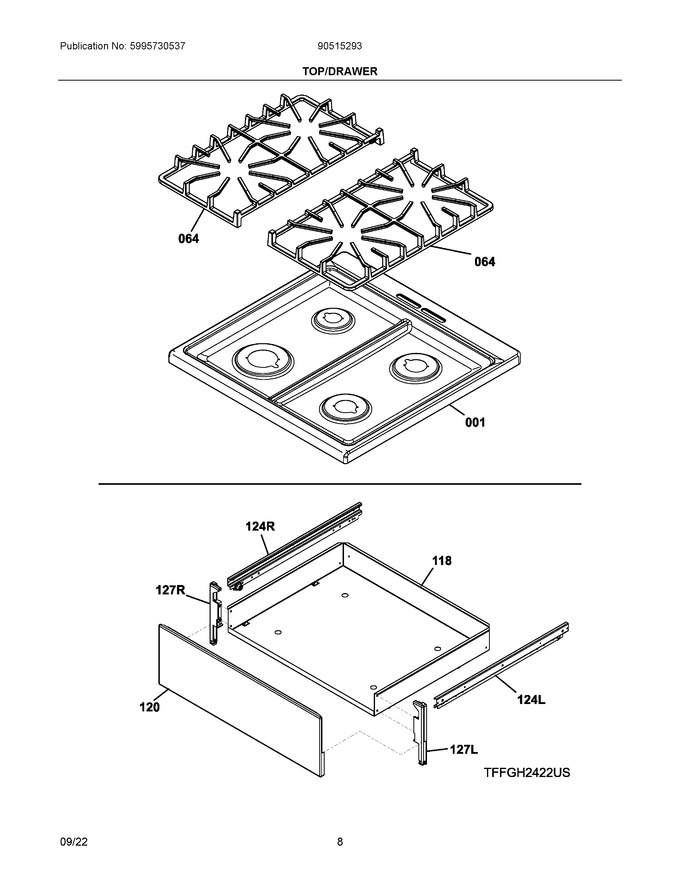

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	A02441647		Cook Top, Black		Appelez-nous	-
64	A12620501		Grate, Top Burner, Black		Appelez-nous	-
118	342175101		Drawer, Tray				$ 103.16
120	342174601		Panel, Drawer Front, Stainless				$ 154.40
124L	342817707		Glide, Drawer, Lh			Immediately	$ 37.37
124R	342817708		Glide, Drawer, Rh			Immediately	$ 41.16
127L	A14042601		Support, Drawer, Lh				$ 21.54
127R	A14042602		Support, Drawer, Rh				$ 21.58
NI	A16663501		Bolt, Burner Support, M3.5 X 6		Appelez-nous	-
NI	342583401		Holder, Hob		Appelez-nous	-
NIA	342553001		Wheel, Drawer, Back			Immediately	$ 10.72
NIA	405536699		Foot Kit, Grate, Rubber, (8 Pcs)		Appelez-nous	-
NIA	356520607		Seal, Cooktop				$ 53.64
NIB	342553101		Wheel, Drawer, Front			Immediately	$ 10.62
NIC	342557201		Axle, Drawer		Appelez-nous	-
