SELECT A DIAGRAM

01 - Cover Sheet

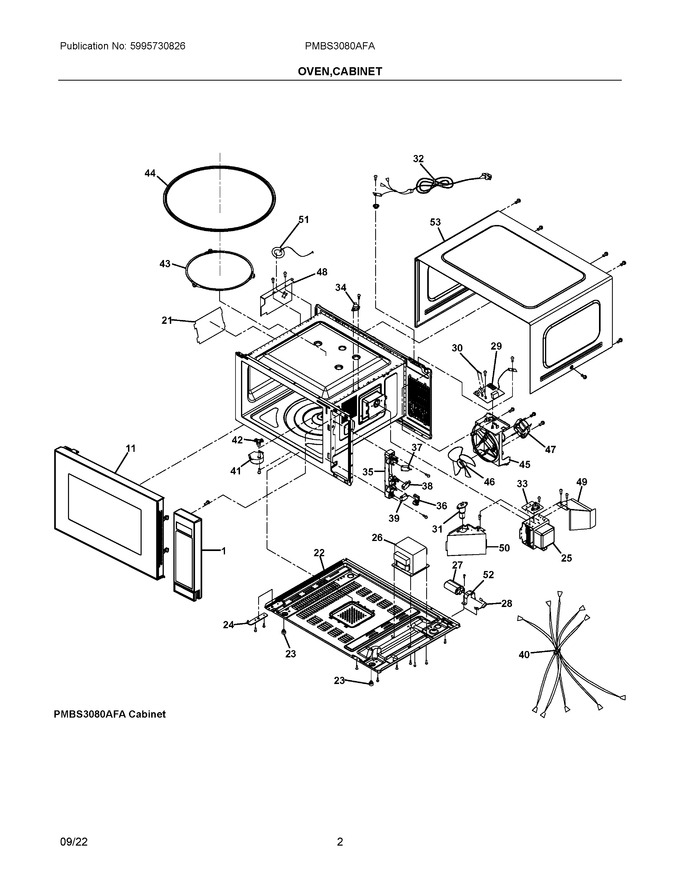

02 - Oven,cabinet


03 - Control Panel,door


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304532666		Control Panel, Assembly, Complete				$ 424.28
11	5304532670		Door Assembly, Complete		Appelez-nous	-
21	5304505675		Cover, Waveguide				$ 11.57
22	5304519319		Base, Plate		Appelez-nous	-
23	5304505674		Foot, Cabinet Support, Rubber				$ 11.57
24	5304519320		Hinge, Door, Lower		Appelez-nous	-
25	5304513456		Magnetron, High Voltage				$ 283.53
26	5304513457		Transformer, High Voltage				$ 414.67
27	5304513458		Capacitor, High Voltage			Immediately	$ 124.39
28	5304513459		Diode, High Voltage			Immediately	$ 30.37
29	5304525109		Filter, Noise, Electronic				$ 86.00
30	5304517874		Fuse, Noise Filter			Immediately	$ 12.75
31	5304527876		Bulb, Lamp		Appelez-nous	-
32	5304520015		Power Cord, Service				$ 106.27
33	5304519318		Thermostat, Assembly				$ 22.12
34	5304520011		Thermostat, 120/80h				$ 17.35
35	5304519341		Bracket, Latch			Immediately	$ 25.88
36	5304532544		Lever, Interlock, Lower				$ 6.31
37	5304520019		Microswitch				$ 25.50
38	5304509460		Microswitch, Secondary   (Replaces: 5304520020)			Immediately	$ 45.27
39	5304520021		Microswitch, Monitor			Immediately	$ 16.68
40	5304520022		Harness, Wiring, Main				$ 117.69
41	5304532545		Motor, Turntable			Immediately	$ 46.27
42	5304519346		Coupler, Turntable				$ 9.45
43	5304519347		Ring Assembly, Rotating				$ 37.45
44	5304519348		Tray, Glass				$ 195.19
45	5304519349		Guide, Fan		Appelez-nous	-
46	5304519350		Blade, Fan				$ 16.92
47	5304519351		Motor, Fan				$ 90.70
48	5304519353		Insulator, Heat		Appelez-nous	-
49	5304513477		Guide, Air, Magnetron				$ 21.55
50	5304532543		Cover, Wind Guide, Metal		Appelez-nous	-
51	5304509652		Sensor, Humidity				$ 305.46
52	5304509477		Retainer, Capacitor Strap		Appelez-nous	-
53	5304519354		Wrapper, Outer Case				$ 130.13

    View Diagram in Separate Window       Print Part List
