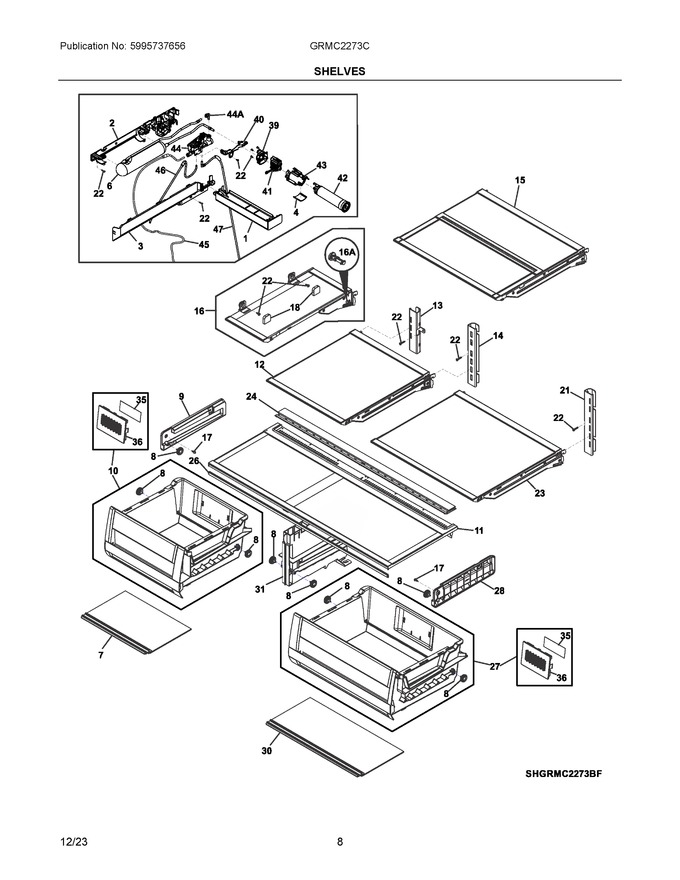

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304529551 | Cover, Filter Facia |
|
$ 60.44 | |||||
| 2 | 5304529543 | Support, Water Valve, & Tank |
|
- | |||||
| 3 | 5304529550 | Cover, Water Tank |
|
- | |||||
| 4 | 5304529552 | Seal, Foam, 37 X 70mm |
|
- | |||||
| 6 | 5304523037 | Tank, Water, Disp Reservoir |
|
$ 179.78 | |||||
| 7 | 5304519123 | Cover, Mullion Storage, Glass, Lh |
|
$ 35.74 | |||||
| 8 | 5304519124 | Roller, Crisper Glide |
|
$ 16.84 | |||||
| 9 | 5304519125 | Rail, Crisper, Lh Side |
|
- | |||||
| 10 | 5304529585 | Drawer Assembly, Crisper, Lh, W/rollers |
|
$ 139.39 | |||||
| 11 | 5304529587 | Cover Assembly, Crispers, W/glass |
|
- | |||||
| 12 | 5304523041 | Shelf Assembly, Cantilever, Glass, Lh |
|
$ 285.15 | |||||
| 13 | 5304519129 | Bracket, Cantilever Shlf, Lh |
|
- | |||||
| 14 | 5304519130 | Bracket, Cantilever Shlf, Center |
|
$ 52.45 | |||||
| 15 | 5304523044 | Shelf Assembly, Cantilever, Glass, Upper |
|
$ 248.94 | |||||
| 16 | 5304523045 | Shelf Assembly, Flip Up, Glass, Lh |
|
$ 317.66 | |||||
| 17 | 241641505 | Screw, Hilo Phil Pn, .5", White |
|
- | |||||
| 18 | 5304519133 | Cover, Screw, Small |
|
$ 8.19 | |||||
| 21 | 5304519136 | Bracket, Cantilever Shlf, Rh |
|
$ 53.87 | |||||
| 22 | 811949503 | Screw, Truss, 4.2 X 13 |
|
$ 3.03 | |||||
| 23 | 5304523047 | Shelf Assembly, Cantilever, Glass, Rh |
|
$ 281.36 | |||||
| 24 | 5304523048 | Housing Assembly, Auto Humidity, W/membrane |
|
$ 65.98 | |||||
| 26 | 5304519140 | Gasket, Crisper Cover |
|
Immediately | $ 23.98 | ||||
| 27 | 5304537361 | Drawer Assembly, Crisper, Rh, W/rollers (Replaces: 5304529584) |
|
$ 130.09 | |||||
| 28 | 5304519142 | Rail, Crisper, Rh Side |
|
$ 19.72 | |||||
| 30 | 5304519143 | Cover, Mullion Storage, Glass, Rh |
|
Immediately | $ 46.17 | ||||
| 31 | 5304532661 | Divider, Crisper Cover |
|
$ 60.67 | |||||
| 35 | FRPAPK2RF | Frigidaire Pa Pk-2 Refill |
|
Immediately | $ 32.14 | ||||
| 36 | 5304529586 | Cover, Freshness Boost |
|
$ 17.35 | |||||
| 39 | 5304536610 | Cover, Manifold, Rear (Replaces: 5304529548) |
|
$ 2.93 | |||||
| 40 | 5304529545 | Guide, Water Tube |
|
Immediately | $ 18.25 | ||||
| 41 | 140156010062 | Manifold, Water Filter (Replaces: 5304529546) |
|
Immediately | $ 54.58 | ||||
| 42 | FPPWFU02 | Frig Purepour Wf-2 Connectors |
|
Immediately | $ 88.80 | ||||
| 43 | 5304529547 | Cover, Manifold, Front |
|
$ 65.25 | |||||
| 44 | 5304529544 | Water Valve, Assembly, Double |
|
Immediately | $ 148.69 | ||||
| 45 | 5304524353 | Tubing, Valve, To Door Hinge |
|
Immediately | $ 36.05 | ||||
| 46 | 5304527422 | Tubing, Valve, To Ff Ice Maker |
|
Immediately | $ 16.23 | ||||
| 47 | 5304529549 | Tube, Water |
|
Immediately | $ 23.06 | ||||
| 16A | 5304523682 | Pin, Interlock, Flip Up Shelf |
|
- | |||||
| 44A | 5304523053 | Connector, Tubing, Quick Connect |
|
Immediately | $ 25.94 | ||||
| NI | 242200102 | Clip, Tubing, 90 Deg Elbow |
|
$ 10.63 | |||||
| NIA | 5304519098 | Screw, Trilob, M4 X 12 |
|
$ 3.03 | |||||
| NIA | 5304529553 | Seal, Foam, Inlet Tube |
|
- |
