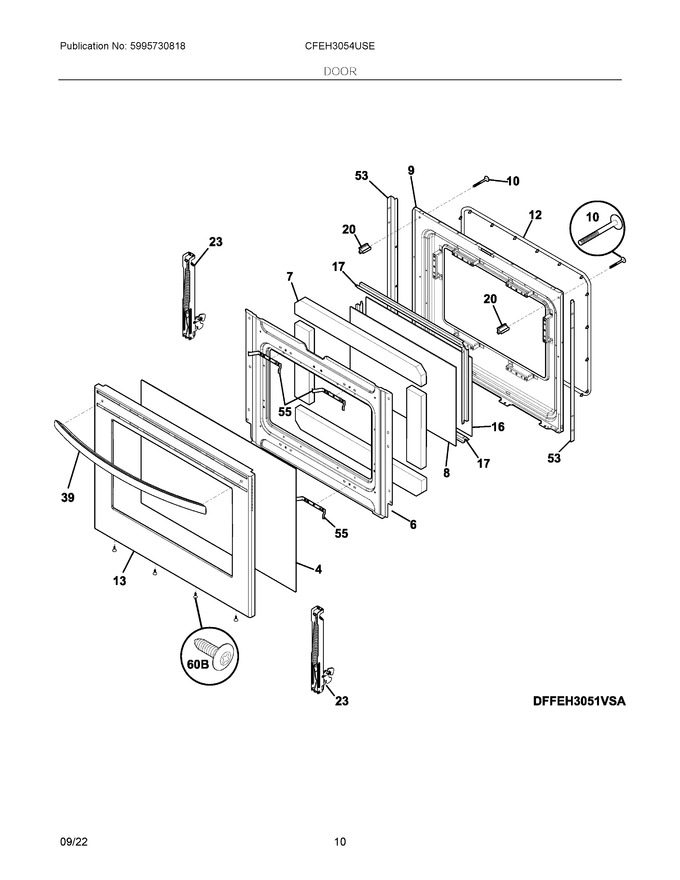

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 4 | 316452762 | Glass, Oven Door, Black, W/foil |
|
Immediately | $ 96.17 | ||||
| 6 | 316402316 | Shield, Wool |
|
Immediately | $ 88.72 | ||||
| 7 | 316403900 | Insulation, Oven Door |
|
Immediately | $ 72.30 | ||||
| 8 | 5304503232 | Glass, Oven Door, Inner (Replaces: 316117506) |
|
$ 116.95 | |||||
| 9 | 316423807 | Liner-oven Door |
|
$ 171.40 | |||||
| 10 | 5304507924 | Screw, Handle Mtg., #10-24 X 2, (2) (Replaces: 316439505) |
|
Immediately | $ 16.48 | ||||
| 12 | 5304498835 | Seal, Oven Door |
|
Immediately | $ 88.74 | ||||
| 13 | 316604001 | Panel, Oven Door, Stainless |
|
$ 166.23 | |||||
| 17 | 5304504811 | Spacer, Glass |
|
Immediately | $ 25.02 | ||||
| 20 | 316284102 | Spacer, Door Handle, (2) |
|
Immediately | $ 17.44 | ||||
| 23 | 316575959 | Hinge-ovn Door Gray |
|
$ 55.05 | |||||
| 39 | 140067504096 | Handle, Door, Stainless (Replaces: 5304531692) |
|
$ 53.48 | |||||
| 53 | 5304532043 | Shield, Filler, Door, (2) (Replaces: 316408101) |
|
$ 37.41 | |||||
| 55 | 316408301 | Bracket, Glass Support, (4) |
|
$ 6.07 | |||||
| 60B | 316021109 | Screw, 8-18 X 0.5, Chrome |
|
Immediately | $ 27.50 | ||||
| NI | 5303285179 | Screw, Wafer Head, 8-32t X 0.500, Black, 44* |
|
$ 13.46 | |||||
| NI | 316483102 | Label, Anti-tip |
|
$ 3.56 | |||||
| NIA | 316418900 | Screw, Sims Lp, #8-32 X 5/16", Black |
|
$ 14.18 |
