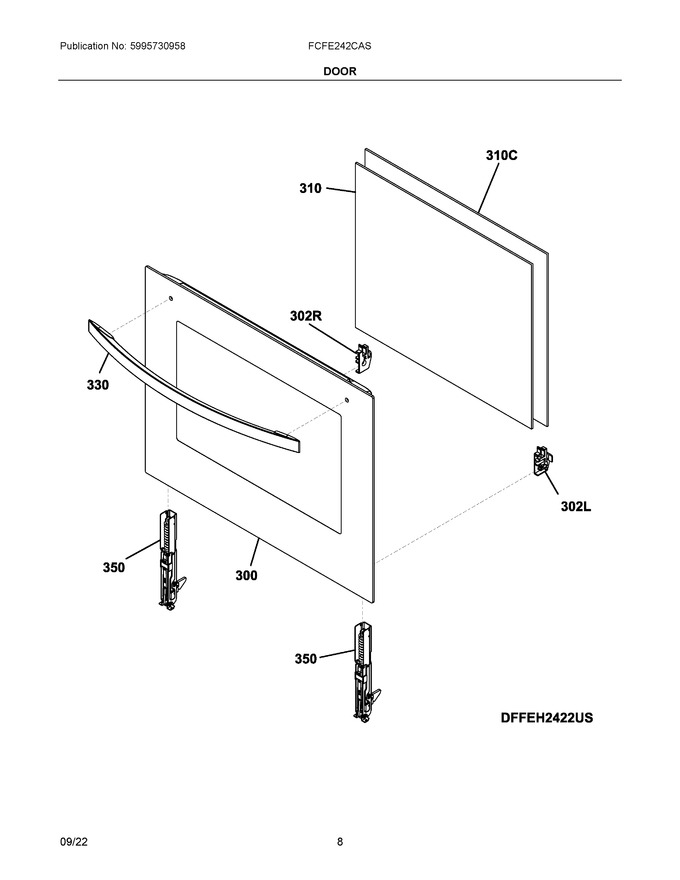

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
300	342841147		Glass, Door Front, Black				$ 202.85
310	356150302		Glass, Door, 474x383mm, Inner			Immediately	$ 155.87
330	A00206005		Handle, Door, Stainless				$ 127.67
350	A12611602		Hinge, Oven Door			Immediately	$ 104.66
302L	A03195502		Bracket, Glass Holder, Lh				$ 29.78
302R	A03195501		Bracket, Glass Holder, Rh				$ 27.88
310C	342934103		Glass, Door, 490x401.5mm, Inner			Immediately	$ 160.78
NIA	807031902		Bolt, Handle, 4x16 T20				$ 11.38
