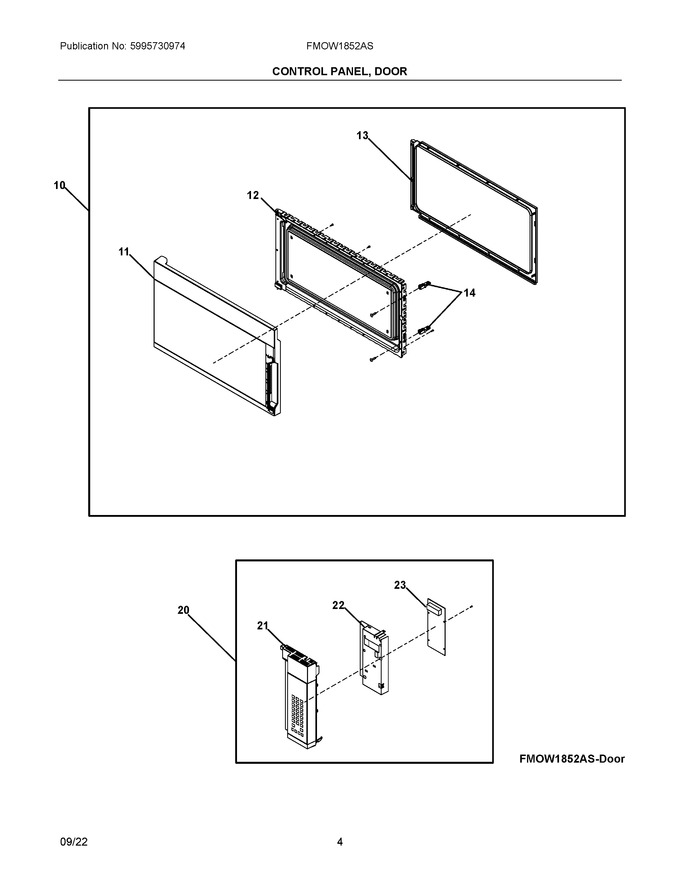

03 - Control Panel, Door
04 - Wiring Diagram
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 10 | 5304532787 | Door Assembly, Complete, Stainless |
|
$ 273.12 | |||||
| 11 | 5304532788 | Door Assembly, Outer, Stainless |
|
- | |||||
| 12 | 5304523273 | Frame Assembly, Door |
|
$ 148.10 | |||||
| 13 | 5304523248 | Gasket, Door |
|
$ 16.39 | |||||
| 14 | 5304523249 | Latch, Door |
|
$ 8.77 | |||||
| 20 | 5304532789 | Control Panel, Assembly, Stainless, Complete |
|
$ 458.61 | |||||
| 21 | 5304532790 | Control Panel, Assembly, Stainless, Outer, W/touch Pad |
|
- | |||||
| 22 | 5304532791 | Shield, Control Panel |
|
- | |||||
| 23 | 5304532789 | Pc Board, Control, W/display (Replaces: 5304532792) |
|
$ 458.61 |
