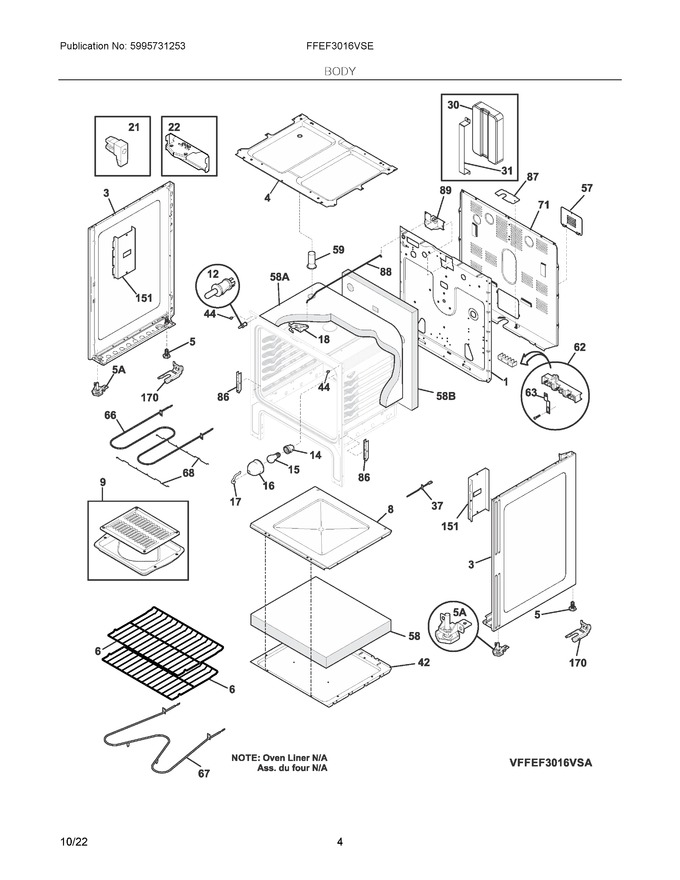

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316401806		Panel, Main Back				$ 83.93
3	316400144		Panel, Bodyside, Black, Rh			Immediately	$ 134.69
4	5304522901		Burnerbox				$ 85.69
5	316272900		Screw, Leveling, Plastic, Rear, (2)			Immediately	$ 27.50
6	316496201		Rack, Oven			Immediately	$ 103.48
8	316400601		Panel, Oven Bottom				$ 125.87
9	5304494997		Broil Pan Kit, Pan & Insert, Slate Blue, Optional, Accessory				$ 72.01
12	316445501		Switch, Oven Light, Door Frame				$ 90.01
14	316116400		Receptacle, Oven Light			Immediately	$ 56.10
15	316538904		Lamp, Oven Light			Immediately	$ 20.48
16	5304524341		Lens, Oven Light, Glass			Immediately	$ 14.18
17	316087500		Retainer, Lens				$ 56.70
18	316405800		Latch Assembly, Oven Door			Immediately	$ 56.74
21	316408000		Clip, Bodyside				$ 18.20
22	316286300		Bracket-bodyside, (2)				$ 17.72
30	5304527904		Counterweight, Concrete Block				$ 30.47
31	5304527899		Bracket, Concrete Block		Appelez-nous	-
37	316490000		Probe, Oven Temp			Immediately	$ 58.30
42	316400701		Shield, Wool, Lower				$ 162.30
44	316517600		Bumper, Front, Main				$ 12.05
57	316283600		Cover, Access				$ 12.50
58	316403803		Insulation, Oven Bottom				$ 43.95
59	316073606		Tube, Oven Vent				$ 56.70
62	5303935271		Terminal Block Kit				$ 73.56
63	316278800		Plate, Grounding Strap		Appelez-nous	-
66	316203200		Element, Broil, 4 Pass			Immediately	$ 164.45
67	316075103		Element, Bake, 4 Pass			Immediately	$ 42.36
68	316404002		Support, Element, Broil				$ 8.75
71	316283204		Shield, Rear Wall				$ 56.12
86	316441300		Receptacle, Hinge				$ 21.97
87	316081200		Bracket, Cable Mtg		Appelez-nous	-
88	316203500		Rod, Auto Latch				$ 72.30
89	5304528973		Motor, Latch			Immediately	$ 52.34
151	316404601		Shield, Bodyside				$ 21.27
170	316112005		Anti Tip Kit, Assy, W/template			Immediately	$ 18.91
3A	316400145		Panel, Bodyside, Black, Lh			Immediately	$ 133.93
58A	316406602		Insulation, Oven Wrapper				$ 121.19
58B	316406500		Insulation, Oven Back				$ 88.60
5A	5304509869		Leveling Leg Assy, Metal, Front, (2), Bracket & Leg			Immediately	$ 15.08
NI	316045000		Clip, Wiring Harness, Green, Main Top		Appelez-nous	-
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	5303271648		Screw, Wafer Hd Sq Dr, 8-18ab X 0.5			Immediately	$ 13.46
NI	316260800		Screw-shoulder, W/shoulder, #8-18 X 1/2				$ 13.46
NI	316279600		Screw, Bracket, Stiffener, (4)				$ 12.05
NI	316506000		Bracket, Support, Oven Bottom, (2)				$ 4.55
NI	316282700		Screw, W/washer, 8-18				$ 9.93
NI	5304516158		Harness, Wiring, Main				$ 194.14
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021132		Screw, 8-18 X 11/16, Black, (3)				$ 12.89
NI	5303285179		Screw, Wafer Head, 8-32t X 0.500, Black, 44*				$ 13.46
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NIA	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.03
NIA	316112005		Bracket, Anti-tip   (Replaces: 316107200)			Immediately	$ 18.91
NIA	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 14.18
NIB	316205500		Nut, Hex Flange, 3/8 10-32				$ 11.34
NIB	316116000		Screw, Concrete, 1.75", Anti-tip Brkt				$ 12.89
NIC	316542203		Insulator		Appelez-nous	-
NIC	316541700		Template, Anti-tip		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
