01 - Cover Sheet
02 - Cabinet Parts
03 - Liner Parts
04 - Door Parts
05 - Unit Parts
06 - Shelf Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

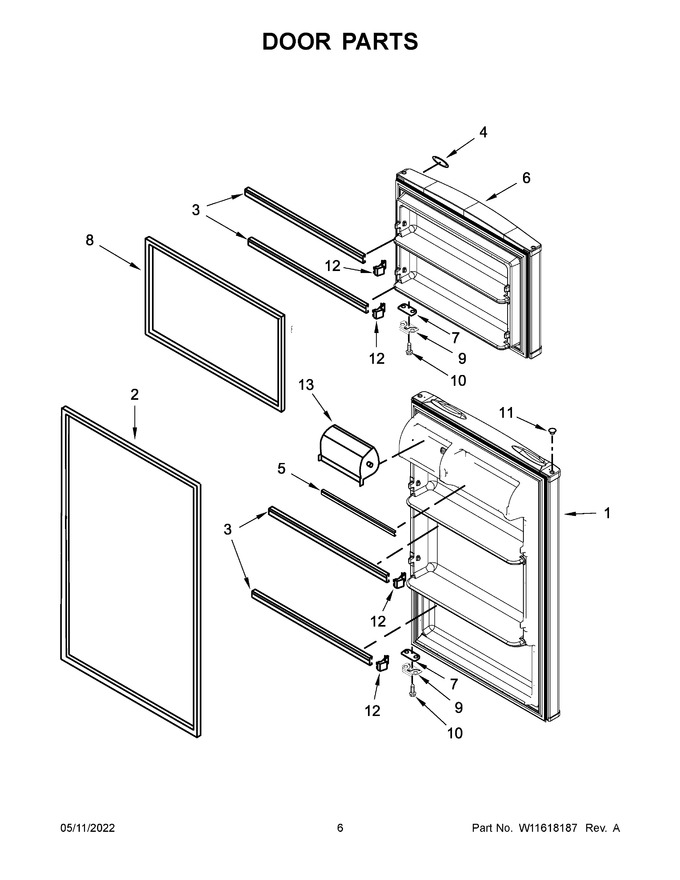

| 1 | LW10681318 | Refrigerator Door (includes Illustration 2 & Molded Door Handle) (stainless) (Replaces: W10681318) |
|
$ 409.23 | |||||
| 2 | W10244874 | Gasket, Door (grey) |
|
$ 199.92 | |||||
| 3 | WP2266727 | Trim, Door (Replaces: 2266727) |
|
Immediately | $ 83.25 | ||||
| 4 | W11178521 | Badge (Replaces: W10884775) |
|
Immediately | $ 56.82 | ||||
| 5 | W11129820 | Trim, Door (Replaces: W10719700) |
|
Immediately | $ 109.15 | ||||
| 6 | LW10681389 | Freezer Door (includes Illustration 8 & Molded Door Handle) (stainless) (Replaces: W10681389) |
|
$ 427.13 | |||||
| 7 | WP2258681W | Shim, Door Stop (white) (Replaces: 2258681W) |
|
Immediately | $ 6.47 | ||||
| 8 | W11661186 | Gasket, Door (grey) (Replaces: W10244875) |
|
Immediately | $ 197.19 | ||||
| 9 | W10492012 | Bracket, Door Stop |
|
$ 14.45 | |||||
| 10 | W10276642 | Screw (Replaces: 8533904) |
|
$ 5.49 | |||||
| 11 | WP2254517 | Plug, Hole (grey) (Replaces: 2254517) |
|
Immediately | $ 20.86 | ||||
| 12 | WP2156003 | Endcap, Trim (Replaces: 2156003) |
|
Immediately | $ 11.36 | ||||
| 13 | WP2207942 | Door, Compartment (Replaces: 2207942) |
|
Immediately | $ 52.88 |
