SELECT A DIAGRAM

01 - Cover Sheet


02 - Cabinet Parts


03 - Cabinet Trim Parts


04 - Refrigerator Liner And Control Parts

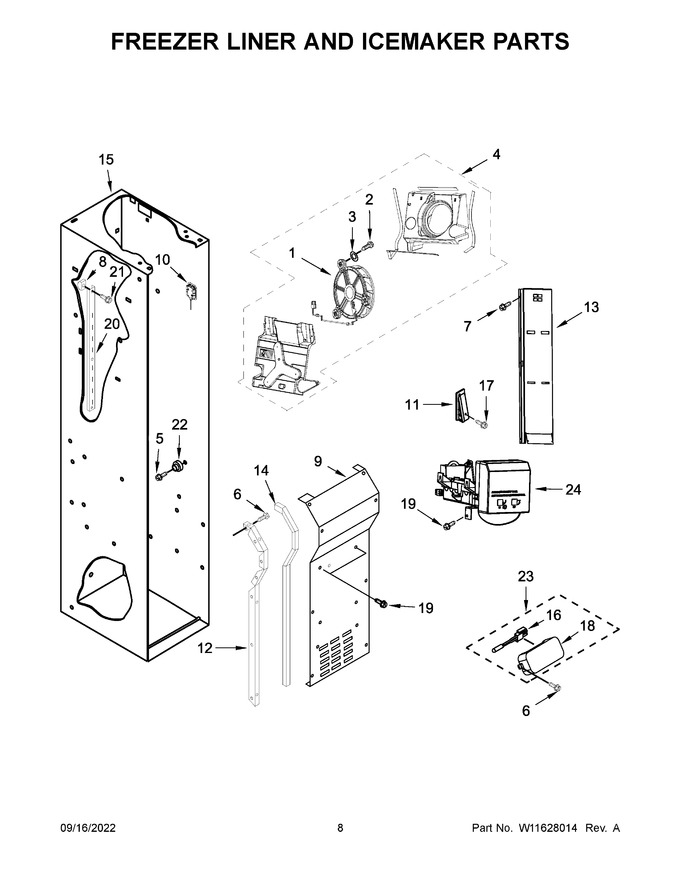

05 - Freezer Liner And Icemaker Parts


06 - Refrigerator Shelf Parts


07 - Freezer Shelf Parts


08 - Refrigerator Door Parts


09 - Freezer Door Parts


10 - Top Grille And Unit Cover Parts


11 - Upper Unit Parts


12 - Lower Unit And Tube Parts


13 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11618271		Fan, Evaporator   (Replaces: W11544700)			Immediately	$ 232.03
2	WP488729		Screw (stainless)   (Replaces: 487539)			Immediately	$ 8.28
3	3400916		Washer		Appelez-nous	-
4	W11631626		Assembly, Evaporator Fan   (Replaces: W11437867)			Immediately	$ 335.73
5	W10784949		Screw (black)				$ 11.41
6	W11624204		Screw   (Replaces: 486194)				$ 14.72
7	WPW10141604		Screw   (Replaces: W10141604)				$ 8.85
8	2259445		Support, Ladder		Appelez-nous	-
9	W11460632		Cover, Evaporator		Appelez-nous	-
10	W11484836		Assembly, Led Module   (Replaces: W11229041)			Immediately	$ 28.36
11	W10769280		Wedge, Air Duct (left Hand)		Appelez-nous	-
12	W11756941		Rail, Evaporator Cover (left Hand)   (Replaces: W11467831)		Appelez-nous	-
13	W11469466		Duct, Air				$ 97.88
14	W11467832		Gasket, Evaporator Cover				$ 26.94
15	NP		Cabinet (not A Servicable Part)		Appelez-nous	-
16	WP2188820		Thermistor   (Replaces: 2188820)			Immediately	$ 30.85
17	WP98008545		Screw (black)   (Replaces: W10308487)				$ 18.60
18	W11235125		Cover, Thermistor   (Replaces: W10912104)				$ 108.10
19	W10678210		Screw (black)				$ 19.80
20	W11481486		Ladder, Shelf		Appelez-nous	-
21	W10678207		Screw   (Replaces: W10832438)				$ 16.43
22	W10789219		Assembly, Shelf Stud (includes Screw)				$ 25.43
23	W11759117		Assembly, Thermistor   (Replaces: W11550867)			Immediately	$ 45.05
24	W11744240		Assembly, Complete Icemaker   (Replaces: W11322218)			Immediately	$ 420.47
11A	W10769279		Wedge, Air Duct (right Hand)		Appelez-nous	-
12A	W11756942		Rail, Evaporator Cover (right Hand)   (Replaces: W11467830)		Appelez-nous	-
NI	W10234156		Installation Block				$ 16.77
NI	W11682972		Template, Door (wood Panel)   (Replaces: W10488113)				$ 355.69
NI	W11175806		Kit, Installation   (Replaces: W10613135)				$ 279.62
NI	NP		Cabinet (not A Servicable Part)		Appelez-nous	-
NI	W10744761		Template, Grill (wood Panel)				$ 81.92

    View Diagram in Separate Window       Print Part List
