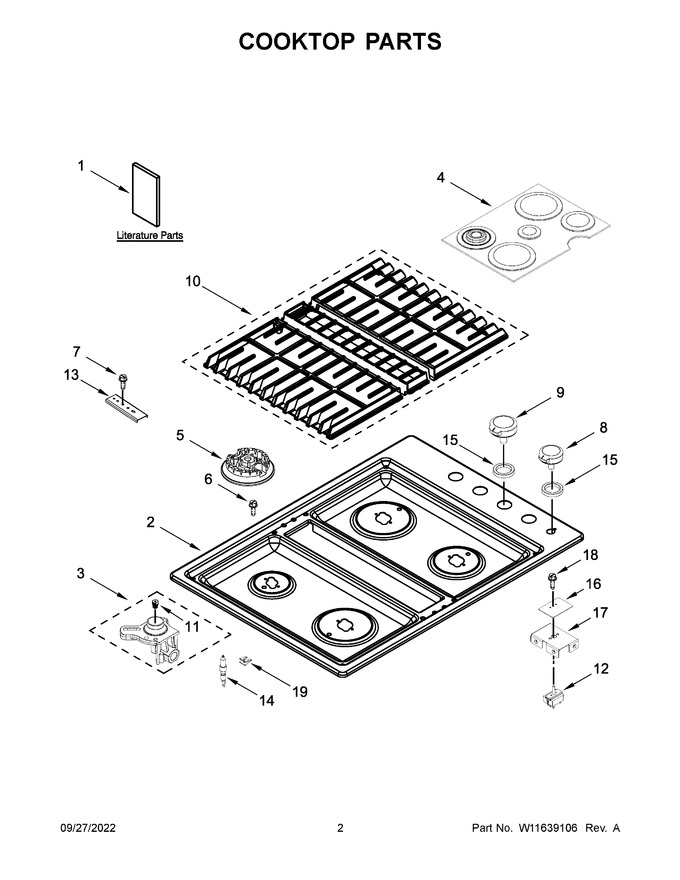

02 - Cooktop Parts


03 - Blower Unit Parts


04 - Burner Box Parts


05 - Optional Parts Not Included


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11468900		Owner's Manual		Appelez-nous	-
2	W11051498		Top, Main (stainless)   (Replaces: W10842288)				$ 468.21
3	W10826752		Holder, Orifice (17k) (right Rear)				$ 87.86
4	W11579391		Kit, Burner Cap   (Replaces: W10910373)				$ 187.34
5	W11531096		Flame Spreader (center Front & Right Rear)   (Replaces: W10732971)				$ 70.17
6	7101P42660		Screw		Appelez-nous	-
7	WP3400093		Screw   (Replaces: 3400093)				$ 6.47
8	W11084044		Knob, Fan (stainless)   (Replaces: W10884724)				$ 69.25
9	W11620703		Knob, Control (stainless)   (Replaces: W11514464)		Appelez-nous	-
10	W11369700		Grate Kit (includes 3 Grates) (black)   (Replaces: W11241661)				$ 334.49
11	W10907865		Orifice (right Rear)				$ 77.73
12	W11676792		Switch, Blower   (Replaces: W10866564)				$ 57.40
13	8186533		Bracket, Cooktop Mounting   (Replaces: 4455917)				$ 79.60
14	W11690138		Electrode (left Front)   (Replaces: W10862325)				$ 25.64
15	W11240529		Bezel (stainless)   (Replaces: W10884725)				$ 52.88
16	W11508237		Seal, Downdraft Pad		Appelez-nous	-
17	W10868745		Bracket, Switch Mount				$ 65.38
18	7101P30960		Screw		Appelez-nous	-
19	W11684564		Electrode, Spring   (Replaces: W10827923)			Immediately	$ 10.71
11A	W11677633		Orifice (5k) (left Rear)   (Replaces: W10849719)				$ 84.99
11B	W10907868		Orifice (left Front)				$ 77.73
11C	W10907866		Orifice (center Front)				$ 77.73
14A	W10862326		Electrode (left Rear)				$ 57.72
14B	W10862323		Electrode (right Front)			Immediately	$ 36.14
14C	W10862324		Electrode (right Rear)			Immediately	$ 59.59
1A	W11466944		Quick Start Guide		Appelez-nous	-
1B	W11565447		Sheet, Tech		Appelez-nous	-
3A	W10826751		Holder, Orifice (5k) (left Rear)		Appelez-nous	-
3B	W10826754		Holder, Orifice (10k) (left Front)				$ 90.98
3C	W10826753		Holder, Orifice (15k) (center Front)				$ 90.93
5A	W11531098		Flame Spreader (left Rear)   (Replaces: W10732968)				$ 69.19
5B	W11531097		Flame Spreader (left Front)   (Replaces: W10732969)				$ 69.56
NI	8287106		Clip, Wire   (Replaces: W10183556)		Appelez-nous	-
NI	W11465762		Harness, Jumper				$ 28.61
NI	7101P46060		Screw, Grounding		Appelez-nous	-
NI	NP		Hinge, Grate (not Serviced)		Appelez-nous	-
NI	W10132200		Relief, Strain		Appelez-nous	-
NI	W11083837		Kit, Lp Orifice   (Replaces: W11022461)				$ 147.74
NI	W11190478		Harness, Blower				$ 101.40
NI	W10909126		Kit, Plenum Screw			Immediately	$ 18.98
NI	W11465116		Harness, Main		Appelez-nous	-
NI	W10831977		Cord, Power				$ 96.50
