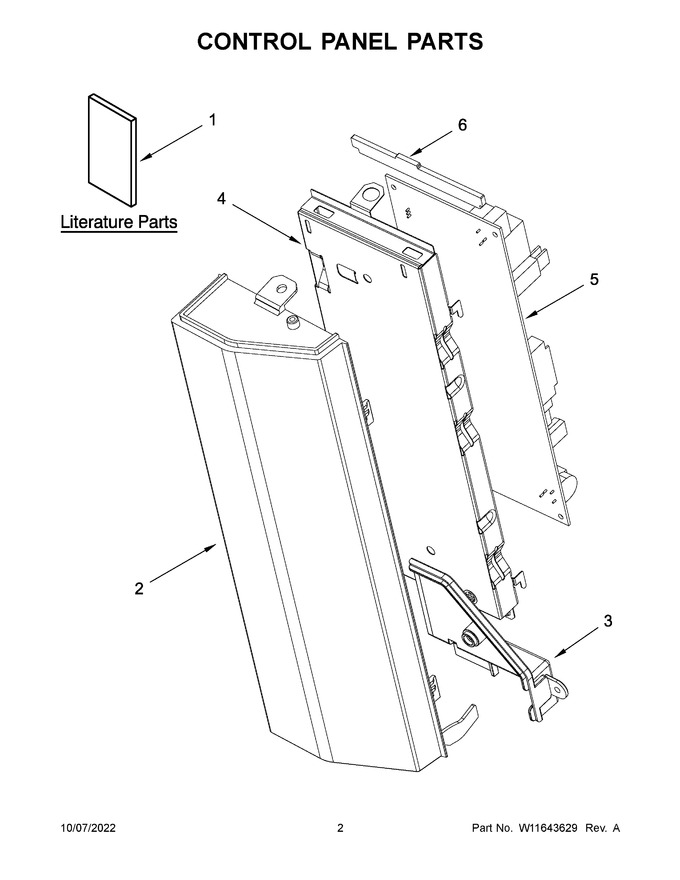

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11643093 | Installation Instructions |
|
- | |||||
| 2 | W10540298 | Cover, Control (black) |
|
- | |||||
| 3 | W10617743 | Duct, Cooling Front |
|
- | |||||
| 4 | W10476546 | Background, Control |
|
- | |||||
| 5 | W10604264 | Pcba, Appliance Control Unit |
|
$ 251.50 | |||||
| 6 | W11590575 | Seal, Control (Replaces: W10540736) |
|
$ 20.22 | |||||
| 1A | W11643083 | Use And Care Guide |
|
- | |||||
| 1B | W11582284 | Quick Reference Guide |
|
- | |||||
| 1C | W10770970 | Tech Sheet |
|
- |
