SELECT A DIAGRAM

01 - (ßÐh€ X&®l< O«ÿÿ


02 - (ßÐh€ X&®l< O«ÿÿ


03 - 34526p Transmission Assy


04 - Agitator/drive Bell/seal Kit/tub & Hub


05 - Brg Hsg/brake/pulley & Pivot Dome


06 - Cab Top/loading Dr & Ctrl Hood Rear Pan

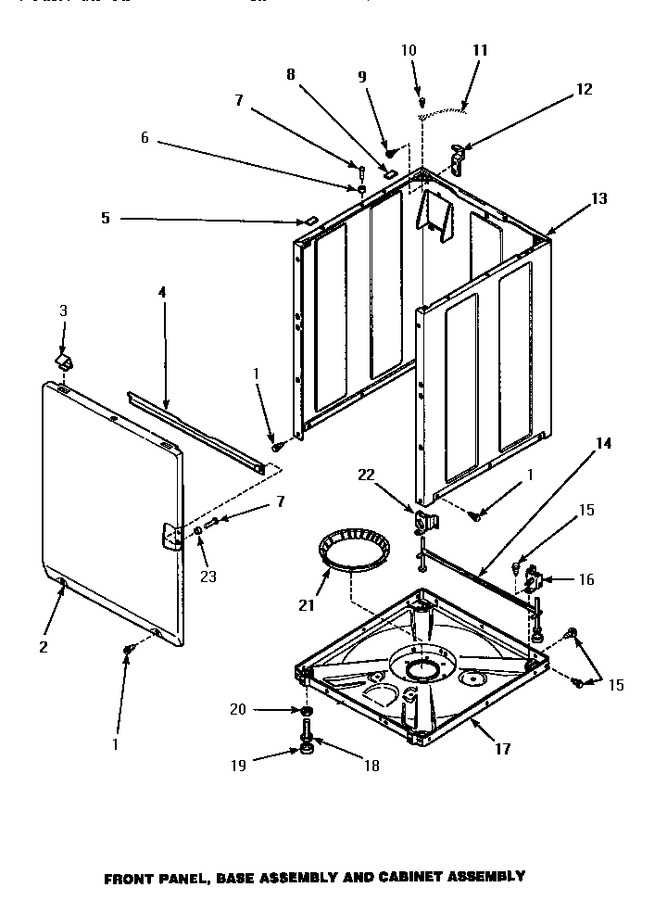

07 - Front Panel, Base Assy & Cabinet Assy


08 - Graphic Panel, Control Hood & Controls


09 - Inlet/fill Hose & Mixing Vlv Mtg Brkt


10 - Mix Vlv/mtr Conn Blks/term & Extractor


11 - Motor, Mtg Brkt, Belt, Pump & Idler Assy


12 - Outer Tub, Cover And Pressure Hose


13 - Out-of-balance Switch


14 - Power Cord & Terminals


15 - Special Tools


16 - Special Tools


17 - Transmission Assy & Balance Ring


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP27001200		Screw   (Replaces: 27196)				$ 6.91
2	34656WP		Assy,front Panel		Appelez-nous	-
3	35865		Clip,hold-down Front Panel				$ 6.95
4	Y35097		Brace, Frt Pnl		Appelez-nous	-
5	56128		Pad, Bumper   (Replaces: Y56128)				$ 6.95
6	56079		Locater, Panel			Immediately	$ 6.95
7	39733		Screw, Tapping   (Replaces: 32671)				$ 6.95
8	36226		Pad, Bumper .25				$ 3.45
9	34499		Screw, No.10b X 1/4 Tap In Hx		Appelez-nous	-
10	WP90767		Screw,8b-18 X 3/8 Ind   (Replaces: 23962)			Immediately	$ 7.04
11	Y00000000		See Note Ground Wire		Appelez-nous	-
12	Y27103		Hinge,hold-down Lug		Appelez-nous	-
13	34475WP		Cabinet		Appelez-nous	-
14	34443		Assy,leg & Stabilier			Immediately	$ 44.62
15	35148		Screw,1/4-14 X 3/8 Hx Hd				$ 6.95
16	4098G		Bracket,sll-right   (Replaces: 36036)				$ 36.76
17	36599P		Assy Nut/ Leg Base		Appelez-nous	-
17	34434P		Assy Nut/leg Base		Appelez-nous	-
18	22003428		Leveling Leg   (Replaces: Y34319)			Immediately	$ 14.41
19	34318		Rubber Foot			Immediately	$ 4.74
20	WP210385		Locknut   (Replaces: Y21899)				$ 6.26
21	DE81-06981A		Snubber Pad & Isolator   (Replaces: 36108)				$ 163.72
22	36037		Bracket,sll-left				$ 77.94
23	28102		Locator,panel		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
