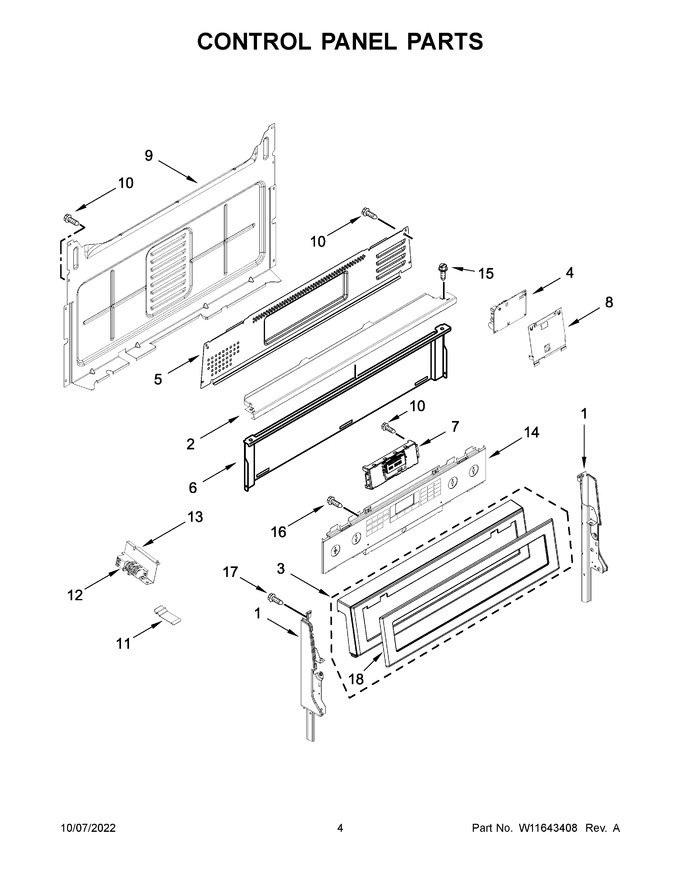

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11219664		Endcap (black (left))   (Replaces: W11130372)				$ 131.85
2	W10516123		Bracket, Console Mounting		Appelez-nous	-
3	W11838051		Assembly, Console Panel (stainless)   (Replaces: W11024861)				$ 509.55
4	W11162730		Module, Spark Dsi   (Replaces: W10920631)			Immediately	$ 196.59
5	W10198745		Cover, Upper				$ 110.48
6	W10192841		Shield, Heat				$ 91.45
7	W11652041		Control (maxwell)   (Replaces: W11541195)				$ 327.37
8	W10762981		Bracket, Mounting				$ 65.50
9	W10184251		Cover, Back		Appelez-nous	-
10	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 12.62
11	WPW10551614		Spreader, Clip-spring   (Replaces: W10551614)				$ 11.77
12	WPW10475149		Module, Spark   (Replaces: W10475149)			Immediately	$ 161.15
13	W10901176		Bracket, Ignitor   (Replaces: W10797001)		Appelez-nous	-
14	W11675300		Assembly, Active Overlay (black)   (Replaces: W10692150)				$ 322.10
15	WP3196175		Screw   (Replaces: 3196165)			Immediately	$ 6.47
16	W11245710		Screw   (Replaces: 9780274)			Immediately	$ 12.65
17	WPW10241367		Screw   (Replaces: W10241367)				$ 6.27
18	NP		Cabinet (not A Servicable Part)		Appelez-nous	-
1A	W11219665		Endcap (black (right))   (Replaces: W11130379)				$ 36.40
