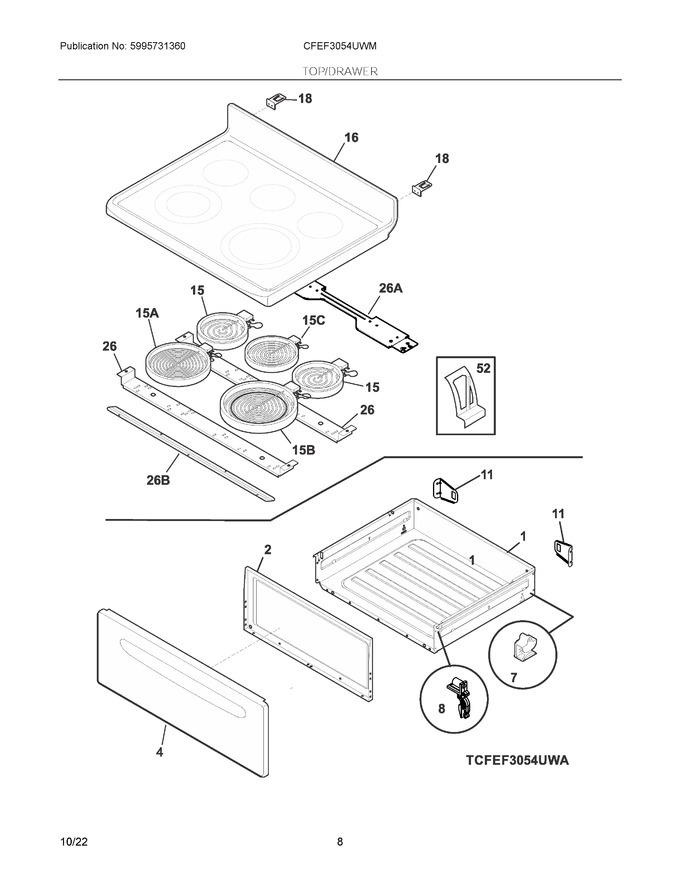

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316408706 | Drawer, Utility |
|
Immediately | $ 110.61 | ||||
| 2 | 5304527989 | Liner, Drawer |
|
$ 28.83 | |||||
| 4 | 5304511973 | Panel, Drawer, White, Outer, W/intgr Handle |
|
$ 100.05 | |||||
| 11 | 5304517906 | Bracket, Rear Support, (2) |
|
$ 11.38 | |||||
| 13 | 5304517905 | Glide, Drawer, Black, Rh Inner |
|
$ 16.69 | |||||
| 14 | 5304517904 | Glide, Drawer, Black, Rh Outer |
|
Immediately | $ 25.79 | ||||
| 15 | 318178110 | Element, Surface, 6", 1200, (2), Radiant |
|
Immediately | $ 122.86 | ||||
| 16 | 5304513844 | Smoothtop, Assembly, Glass/steel, Black/white |
|
$ 598.35 | |||||
| 18 | 316580800 | Bracket-hinge, Main Top |
|
Immediately | $ 9.86 | ||||
| 26 | 5304512926 | Channel, Element Support |
|
$ 46.22 | |||||
| 43 | 5303285179 | Screw, Wafer Head, 8-32t X 0.500, Black, 44* |
|
$ 13.46 | |||||
| 52 | 316461700 | Clip, Element Mtg |
|
$ 12.05 | |||||
| 13A | 5304517903 | Glide, Drawer, Black, Lh Inner |
|
$ 28.97 | |||||
| 14A | 5304517902 | Glide, Drawer, Black, Lh Outer |
|
Immediately | $ 47.98 | ||||
| 15A | 5304533520 | Element, Dual, 9"/6", Surface, 3000w, Quick Boil (Replaces: 316282000) |
|
Immediately | $ 90.14 | ||||
| 15B | 316291200 | Element, Surface, 12", 2700w |
|
Immediately | $ 235.31 | ||||
| 15C | 5304521951 | Element, Warmer, 100 W |
|
Immediately | $ 64.46 | ||||
| 26A | 316498200 | Bracket-support, Chassis, Aluminum |
|
$ 52.33 | |||||
| 26B | 316607600 | Bracket, Chassis Support, Front |
|
$ 52.33 | |||||
| NI | 316021109 | Screw, Hex Head Cup Pt, 8-18 X 0.375, Black (Replaces: 316021105) |
|
Immediately | $ 27.50 | ||||
| NI | 5304522973 | Harness, Surface |
|
$ 131.96 | |||||
| NI | 316260800 | Screw-shoulder, W/shoulder, #8-18 X 1/2 |
|
$ 13.46 | |||||
| NI | 316418901 | Screw, Trilobe, 10-32 X 5/16", Black |
|
$ 14.18 | |||||
| NI | 316418900 | Screw, Sims Lp, #8-32 X 5/16", Black |
|
$ 14.18 | |||||
| NI | 316001017 | Screw, Ground Wire (Replaces: 316001003) |
|
$ 3.03 | |||||
| NI | 316021109 | Screw, 8-18 X 0.5, Chrome |
|
Immediately | $ 27.50 | ||||
| NI | 316089500 | Screw, 10-16 X .486 |
|
$ 13.46 | |||||
| NIA | 5303289910 | Screw, Truss Sqdr, 8a X 1", 62* |
|
$ 5.67 | |||||
| NIA | 5308014215 | Screw, 6-20 X 0.312 |
|
$ 2.28 |
