01 - Cover Sheet

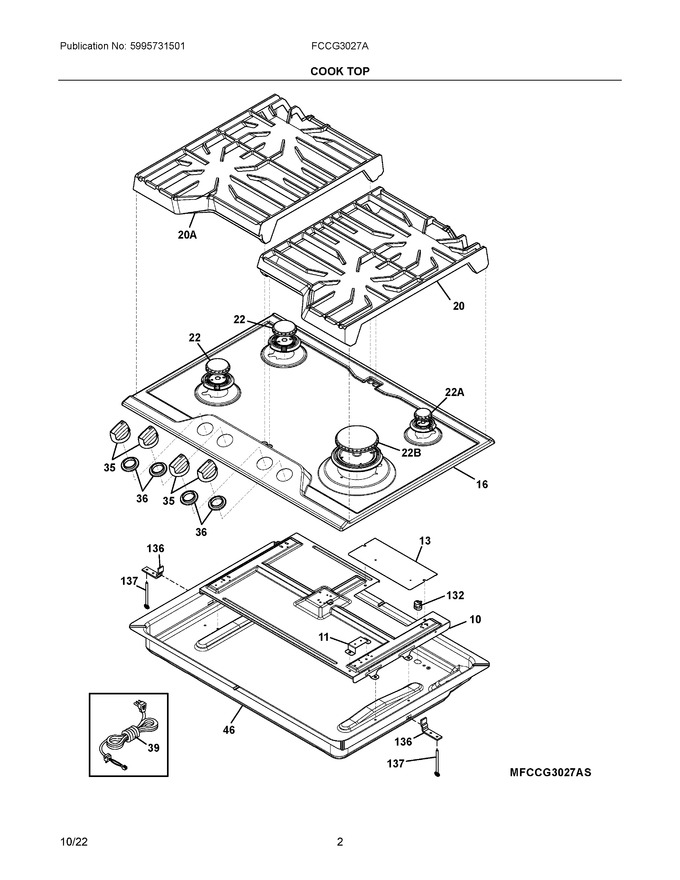

02 - Cook Top


03 - Burner


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	5304533590		Shield, Main Heat		Appelez-nous	-
11	5304533591		Spacer, Shield, High		Appelez-nous	-
16	5304533579		Maintop, Assembly, Black		Appelez-nous	-
20	140301993022		Grate, Burner, Right Side   (Replaces: 5304533601)		Appelez-nous	-
22	5304533596		Cap, Burner, Medium			Immediately	$ 32.66
35	5304533581		Knob, Top Valve, Black		Appelez-nous	-
36	5304533580		Cover, Led		Appelez-nous	-
39	305574902		Power Cord, Electrical, Supply				$ 69.46
46	5304527637		Box, Burner		Appelez-nous	-
132	5304513507		Bushing, Strain Relief				$ 9.10
136	318264301		Support, Box, (2)				$ 42.95
137	305452400		Screw, Lock Bracket, (2)			Immediately	$ 12.20
20A	140301993014		Grate, Burner, Left Side   (Replaces: 5304533600)		Appelez-nous	-
22A	5304533595		Cap, Burner, Small			Immediately	$ 28.92
22B	5304533597		Cap, Burner, Xtra Large			Immediately	$ 46.36
NI	305338604		Screw, 6-32 X 1/4", Back		Appelez-nous	-
NI	305338602		Screw		Appelez-nous	-
NIA	5303323140		Screw, Ground   (Replaces: 305452800)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
