SELECT A DIAGRAM

01 - Cover Sheet


02 - Oven, Cabinet

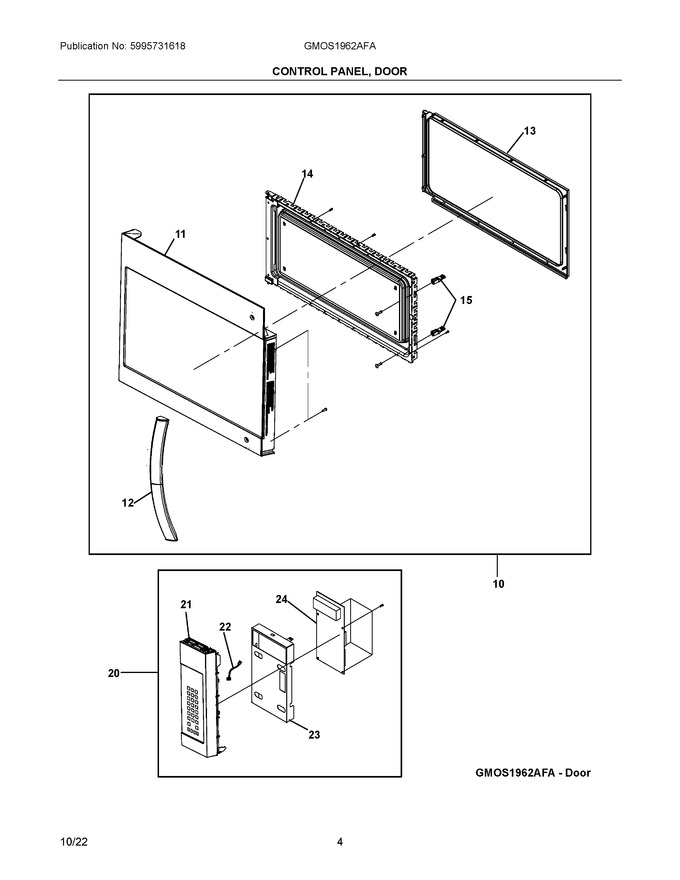

03 - Control Panel, Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	5304533651		Door Assembly, Complete, Stainless, W/handle			Immediately	$ 308.11
11	5304533689		Door Assembly, Outer, Stainless		Appelez-nous	-
12	5304533690		Handle, Door, Stainless				$ 182.66
13	5304523248		Gasket, Door				$ 16.39
14	5304523247		Door Frame, Assembly				$ 152.87
15	5304523249		Latch, Door				$ 8.77
20	5304533657		Control Panel, Assembly, Stainless, Complete			Immediately	$ 634.12
21	5304533691		Control Panel, Assembly, Stainless, Outer, W/touchpad		Appelez-nous	-
22	5304533654		Harness, Wiring, Connector		Appelez-nous	-
23	5304533652		Shield, Pc Board		Appelez-nous	-
24	5304533653		Pc Board, Assembly, Display, Main Control				$ 244.49

    View Diagram in Separate Window       Print Part List
