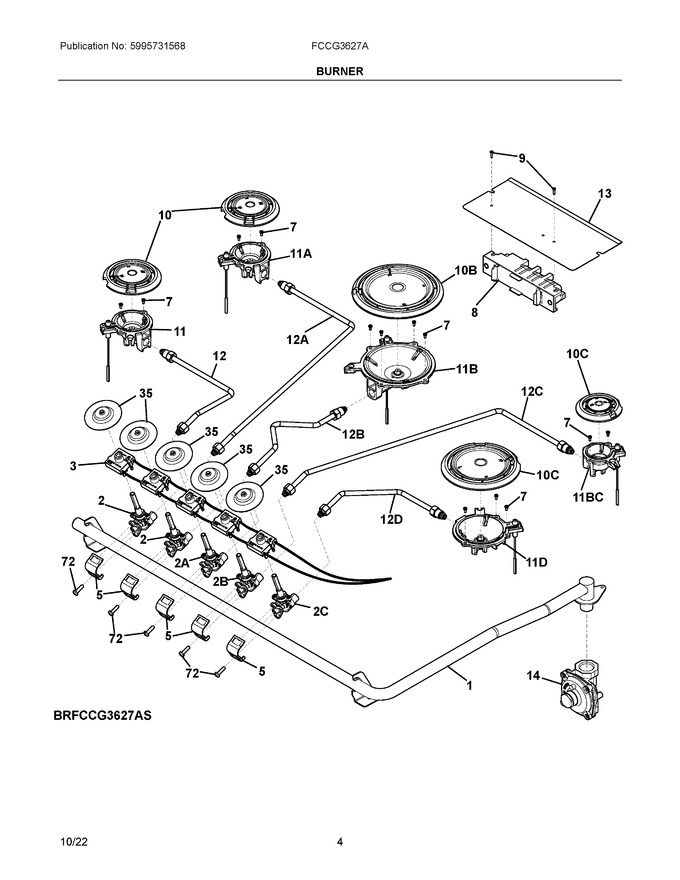

03 - Burner


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304533606		Manifold Tube, Assembly		Appelez-nous	-
2	5304527639		Valve, Saddle, 1125/1250 Btu, Blue Stem				$ 56.88
3	5304533608		Switch Harness, Assembly, Ignitor		Appelez-nous	-
5	357733402		Bracket, Valve Fixing				$ 9.66
7	354324503		Screw, Burner, Stainless		Appelez-nous	-
8	5304537114		Module, Spark, 6 Outputs   (Replaces: 5304505696)			Immediately	$ 47.88
9	305338602		Screw		Appelez-nous	-
10	5304537945		Crown, Burner, Medium   (Replaces: 5304533593)				$ 11.17
11	5304533583		Ignitor/orifice, Assembly, 9.5k Btu, Lh Front		Appelez-nous	-
12	5304533612		Tube Assembly, Burner, Lh Front		Appelez-nous	-
13	5304527658		Cover, Spark Module		Appelez-nous	-
14	5304533599		Regulator, Gas Control			Immediately	$ 96.11
35	5304508440		Bushing, Insulating			Immediately	$ 11.38
72	5304508436		Screw, Saddle Valve, M4		Appelez-nous	-
10B	5304537946		Crown, Burner, Xtra Large   (Replaces: 5304533594)			Immediately	$ 21.09
10C	5304537944		Crown, Burner, Small   (Replaces: 5304533592)			Immediately	$ 8.56
10D	5304537947		Crown, Burner, Large   (Replaces: 5304533618)				$ 16.07
11A	5304533584		Ignitor/orifice, Assembly, 9.5k Btu, Lh Rear		Appelez-nous	-
11B	5304533611		Ignitor/orifice Assembly, 18k, Center, Assembly			Immediately	$ 53.40
11C	5304533582		Ignitor/orifice, Assembly, 5k Btu, Rh Rear			Immediately	$ 35.14
11D	5304533610		Ignitor/orifice Assembly, 12k, Right Front, Assembly				$ 45.10
12A	5304533614		Tube Assembly, Burner, Lh Rear		Appelez-nous	-
12B	5304533613		Tube Assembly, Burner, Center		Appelez-nous	-
12C	5304533615		Tube Assembly, Burner, Rh Rear		Appelez-nous	-
12D	5304533616		Tube Assembly, Burner, Rh Front		Appelez-nous	-
2A	5304533577		Valve, Top Burner, 2000 Btu		Appelez-nous	-
2B	5304533576		Valve, Top Burner, 750 Btu			Immediately	$ 40.14
2C	5304533607		Valve, Top Burner, 1500 Btu				$ 40.14
NI	A21779501		Gasket, Valve Stem		Appelez-nous	-
NI	5304533620		Lp Conversion, Kit		Appelez-nous	-
NIA	5304519944		Cap, Regulator, Red		Appelez-nous	-
NIA	5303323140		Screw, Ground   (Replaces: 305452800)		Appelez-nous	-
NIB	5304516456		Wire, Grounding		Appelez-nous	-
