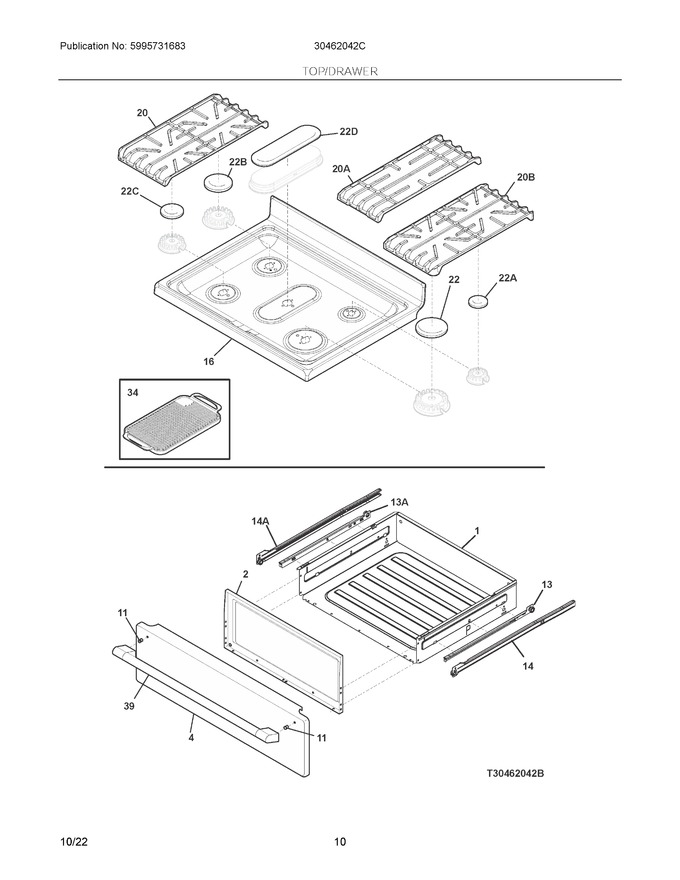

04 - Body


05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316408706		Drawer, Utility			Immediately	$ 110.61
2	5304527988		Liner, Drawer			Immediately	$ 26.54
4	5304517477		Panel, Drawer, Stainless   (Replaces: 5304516893)				$ 182.46
8	808608804		Spark Module			Immediately	$ 76.06
10	5304507924		Screw, Handle Mtg., #10-24 X 2, (2)   (Replaces: 316439505)			Immediately	$ 16.48
11	5304494420		Nut, Hour Glass, Handle Mtg.				$ 12.76
12	316540900		Screw, Burner, Head Mtg, (8)			Immediately	$ 15.17
13	5304517905		Glide, Drawer, Black, Rh Inner				$ 16.69
14	5304517904		Glide, Drawer, Black, Rh Outer			Immediately	$ 25.79
16	316610014		Main Top, Black			Immediately	$ 253.03
20	808754701		Grate, Black, Lh				$ 193.49
22	5304527845		Cap-burner, 14k, Black, Matte, 3mm				$ 22.75
34	5304495353		Griddle			Immediately	$ 166.84
39	5304525007		Handle, Stainless				$ 307.25
13A	5304517903		Glide, Drawer, Black, Lh Inner				$ 28.97
14A	5304517902		Glide, Drawer, Black, Lh Outer			Immediately	$ 47.98
20A	808754801		Grate, Black, Center				$ 197.04
20B	808754702		Grate, Black, Rh				$ 193.49
22A	5304524590		Cap-burner, 5a, Black, Matte, 3mm				$ 18.95
22B	5304508443		Cap, 14k Burner, Matte, Black   (Replaces: 316262004)			Immediately	$ 46.01
22C	5304508442		Cap-burner, 9.5k, Black, Matte, 3mm   (Replaces: 5304527843)			Immediately	$ 36.55
22D	316559604		Cap, 9.5k Burner, Black, Oval				$ 72.30
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	316519700		Screw, Cup Pt, 8-18 X 0.375, Chrome   (Replaces: 316021108)				$ 10.02
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NIA	5304505563		Wire, Ground, Spark Module, W/connector			Immediately	$ 16.23
