SELECT A DIAGRAM

01 - Cover Sheet


02 - Oven, Cabinet

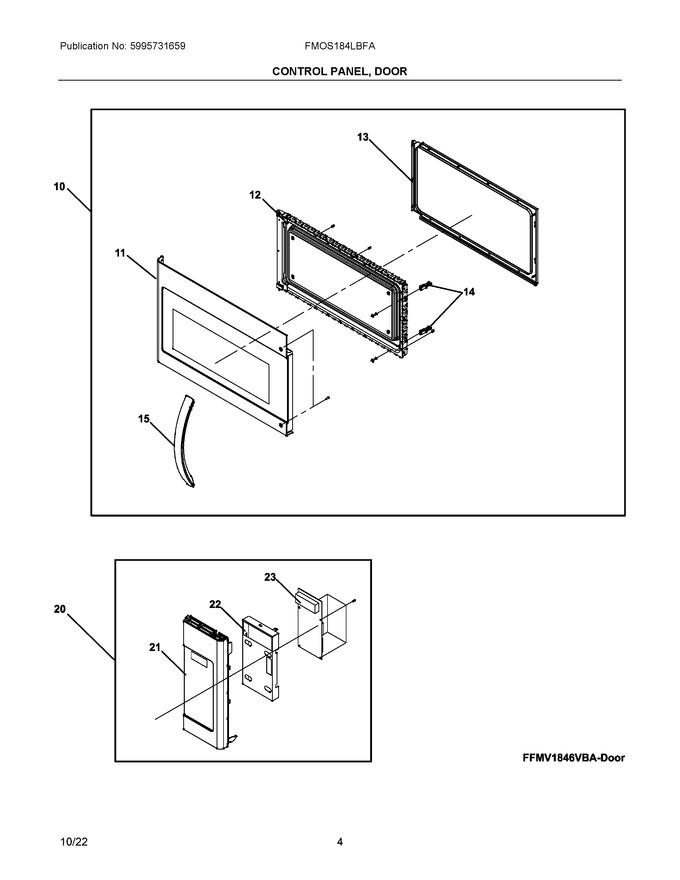

03 - Control Panel, Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	5304523990		Door Assembly, Complete, Stainless, Ez Care				$ 414.05
11	5304523991		Door Assembly, Outer, Stainless, Ez Care		Appelez-nous	-
12	5304523969		Frame, Door, Black			Immediately	$ 115.67
13	5304523970		Gasket, Door				$ 77.40
14	5304523249		Latch, Door				$ 8.77
15	5304523992		Handle, Door, Stainless				$ 204.71
20	5304533687		Control Panel, Assembly, Stainless, Complete		Appelez-nous	-
21	5304533687		Control Panel, Assembly, Stainless, Outer, W/touchpad   (Replaces: 5304533688)		Appelez-nous	-
22	5304523973		Shield, Pc Board				$ 29.65
23	5304533649		Pc Board, Assembly, Control, W/display			Immediately	$ 194.66

    View Diagram in Separate Window       Print Part List
