SELECT A DIAGRAM

01 - Cover Sheet

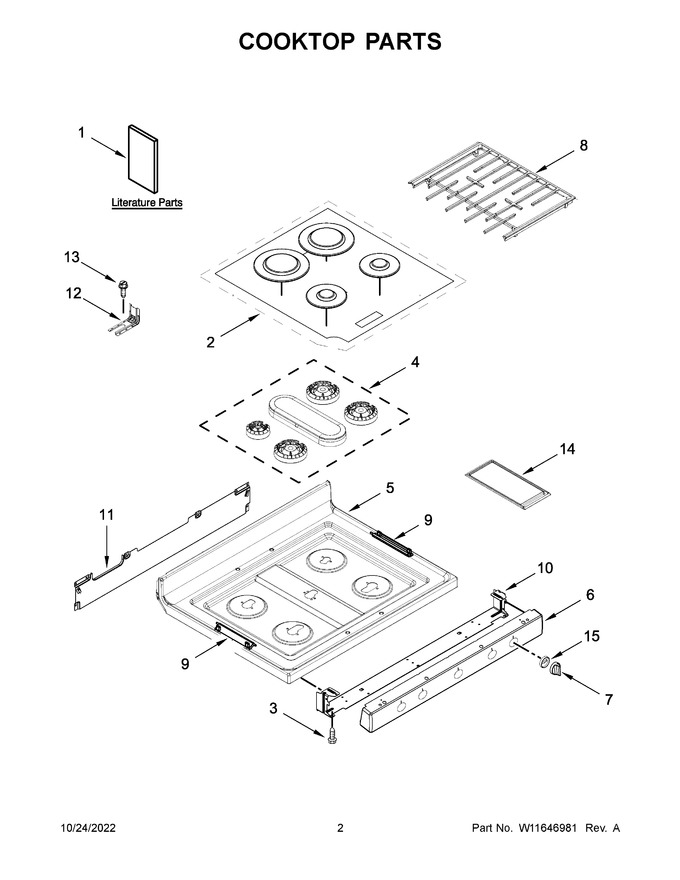

02 - Cooktop Parts


03 - Control Panel Parts


04 - Chassis Parts


05 - Manifold Parts


06 - Door Parts


07 - Drawer Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11426598		Owners Manual		Appelez-nous	-
2	W11605759		Burner Cap Kit (black (set Of 4) (left Front, Left Rear, Right Front, Right Rear))   (Replaces: W11498499)			Immediately	$ 67.82
3	WPW10067840		Screw   (Replaces: W10067840)				$ 6.98
4	W11662402		Burner Kit   (Replaces: W11367106)			Immediately	$ 108.84
5	W11454367		Cooktop (black)   (Replaces: W11418086)			Immediately	$ 364.91
6	W11028196		Panel, Manifold (stainless)   (Replaces: W10861559)		Appelez-nous	-
7	W11190815		Knob (stainless)   (Replaces: W10858253)			Immediately	$ 66.16
8	W11381652		Grate Kit (black (set Of 2))   (Replaces: W11241655)				$ 322.91
9	NP		Gearcase Motor Housing (refer To Color Variation Parts Page)		Appelez-nous	-
10	W11379946		Manifold Panel Bracket		Appelez-nous	-
11	W11379358		Rear Gas Cooktop Bracket		Appelez-nous	-
12	W11447673		Bracket, Anti-tip   (Replaces: W11379945)			Immediately	$ 28.64
13	7101P48560		Screw, Anti-tip Kit		Appelez-nous	-
14	W10432544		Griddle			Immediately	$ 51.00
15	W11223011		Bezel (stainless)   (Replaces: W10876919)			Immediately	$ 54.77
1A	W11565451		Tech Sheet		Appelez-nous	-
1B	W11508918		Quick Start Guide		Appelez-nous	-
NI	3400964		Clip, Wire   (Replaces: 3196520)				$ 76.28
NI	3196896		Clip, Wire		Appelez-nous	-
NI	W11461074		Harness, Main				$ 150.99
NI	NP		Gearcase Motor Housing (refer To Color Variation Parts Page)		Appelez-nous	-
NI	W11161843		Harness, Bake And Broil   (Replaces: W10753750)				$ 185.62
NI	7111P01760		Clamp, Wire		Appelez-nous	-
NI	16515		Clip, Harness   (Replaces: 313438)				$ 17.60
NI	W10334923		Clip, Gas Wiring		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
