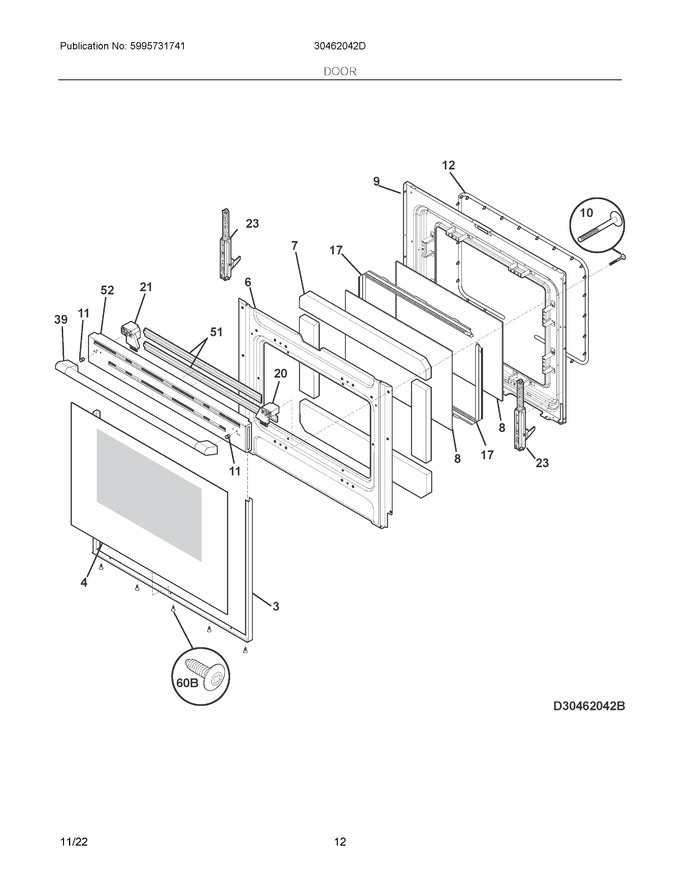

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5303935378		Trim Kit-door, 3 Sided, Black, W/tape			Immediately	$ 63.08
4	316350105		Glass, Door, Black, Outer		Appelez-nous	-
6	316402316		Shield, Wool			Immediately	$ 88.72
7	316403900		Insulation, Oven Door			Immediately	$ 72.30
8	5304503232		Glass, Oven Door, Heat Barrier, Inner, Hrc2   (Replaces: 316117502)				$ 116.95
9	316423814		Liner, Oven Door				$ 162.30
10	5304507924		Screw, Handle Mtg., #10-24 X 2, (2)   (Replaces: 316439505)			Immediately	$ 16.48
11	5304494420		Nut, Hour Glass, Handle Mtg.				$ 12.76
12	5304498835		Seal, Oven Door			Immediately	$ 88.74
17	5304504811		Spacer, Glass			Immediately	$ 25.02
20	316353004		Spacer, Door, Rh				$ 27.30
23	5304522916		Hinge, Door, Dual Spring				$ 92.53
39	5304525007		Handle, Stainless				$ 307.25
51	316355300		Insulation, Door, Top Cap				$ 7.59
52	5304516890		Trim, Door Cap, Stainless, Upper		Appelez-nous	-
20A	316353005		Spacer, Door, Lh				$ 27.30
4A	316355502		Glass Assembly, Door, Black, Outer, W/foil		Appelez-nous	-
60B	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	5303285179		Screw, Wafer Head, 8-32t X 0.500, Black, 44*				$ 13.46
NI	316483102		Label, Anti-tip				$ 3.56
NIA	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 14.18
NIA	5303288572		Screw-handle Mtg		Appelez-nous	-
