SELECT A DIAGRAM

01 - Cover Sheet


02 - Control Panel


03 - Upper Oven

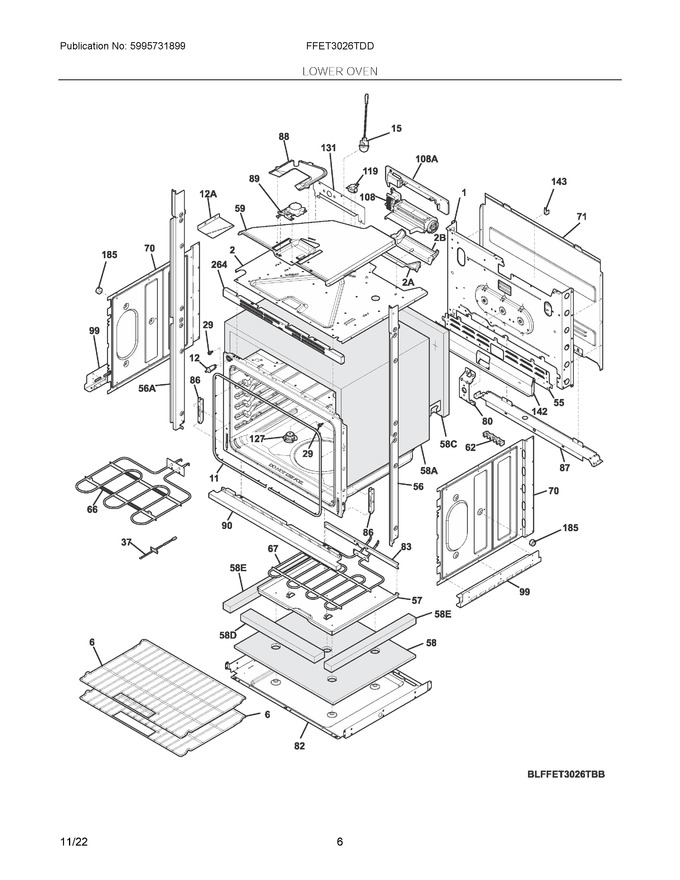

04 - Lower Oven


05 - Doors


06 - Wiring Diagram


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304507685		Panel, Main Back				$ 79.86
2	139028107		Shield, Insulation, Top				$ 65.98
6	139011800		Rack, Oven, W/handle				$ 128.00
11	807545502		Seal, Oven Door, Gray				$ 140.34
12	808136601		Switch, Light, Door   (Replaces: 318394802)			Immediately	$ 44.04
15	5304528790		Lamp Assembly, Round, Halogen			Immediately	$ 20.56
29	316517600		Bumper, Front, Main				$ 12.05
37	5304504897		Sensor, Oven Temp Probe			Immediately	$ 48.13
55	5304507686		Panel, Service, Main Back		Appelez-nous	-
56	318903676		Trim, Side Filler, Black, Rh				$ 126.86
57	5304538692		Box, Bake Element   (Replaces: 5304506949)		Appelez-nous	-
58	5304506952		Insulation, Bake Element, Lower				$ 77.26
59	139015700		Duct, Cooling, Lower Oven		Appelez-nous	-
62	5304409888		Terminal Block   (Replaces: 316056000)			Immediately	$ 26.69
66	5304521498		Element, Broil, 3400w, 6 Pass			Immediately	$ 87.21
67	140010667149		Element, Hidden Bake, 2500w   (Replaces: 5304506946)				$ 55.23
70	139000601		Shield, Insulation, Sides, (2)				$ 72.05
71	139020000		Shield, Rear Wire, Main Back				$ 99.23
80	139021101		Bracket, Support, Chassis/fan				$ 14.89
82	5304507676		Shield, Insulation, Lower, Upper Oven				$ 99.94
83	5304506951		Shield, Bake Element, Rear		Appelez-nous	-
86	318561100		Receptacle, Hinge, (2)				$ 21.23
87	139020100		Bracket, Cable Mtg.		Appelez-nous	-
88	5304506963		Cover, Latch Motor, Lower Oven		Appelez-nous	-
89	5304528835		Motor, Latch Assembly, 2 Terminal			Immediately	$ 74.12
90	5304514322		Trim, Lower Vent, Black Stainless				$ 147.42
99	318256201		Bracket, Side, Bottom, (2)				$ 56.70
108	139038301		Blower Assembly, Cooling, Cross Flow, W/baffle				$ 188.21
119	318578506		Thermostat, Safety, 105c			Immediately	$ 58.19
127	5304538693		Tube Assembly, Vent, W/catalyst   (Replaces: 139042600)			Immediately	$ 10.03
131	5304507691		Cover, Center Rear, Crossflow		Appelez-nous	-
142	5304507678		Shield, Air Deflector, Back		Appelez-nous	-
143	318172904		Bracket, Wire Support		Appelez-nous	-
185	318531800		Spacer, Oven Shield, (2)				$ 12.76
264	139007801		Trim, Center Vent, Black		Appelez-nous	-
108A	139023900		Bracket, Fan Mtg., Cross Flow				$ 31.90
12A	807641201		Shield, Door Switch				$ 64.49
2A	139015900		Shield, Fan, Cross Flow		Appelez-nous	-
2B	139038901		Housing, Fan, Air Diverter				$ 31.19
56A	318903677		Trim, Side Filler, Black, Lh		Appelez-nous	-
58A	139001700		Insulation, Oven Wrapper, Top & Sides		Appelez-nous	-
58C	5304507679		Insulation, Oven Back		Appelez-nous	-
58D	5304506965		Insulation, Bake Element, Front		Appelez-nous	-
58E	5304506966		Insulation, Bake Element, Side		Appelez-nous	-
NI	5304506955		Harness Assembly, Conduit, Elbow Connector, & Wiring				$ 174.43
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	5304470882		Screw, Anti-tip, 8 - 5/8, Black, (2)				$ 13.46
NI	5304517377		Harness, Wiring, Main		Appelez-nous	-
NI	5304517285		Harness Assembly, Filter, Electrical, W/capacitors				$ 38.68
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	318165800		Spacer, Glass, Foam				$ 17.72
NIA	318946500		Bulb, Halogen, G9, 25w, 120v			Immediately	$ 60.44
NIA	139022101		Insualtion, Noise Dampening		Appelez-nous	-
NIA	807597603		Screw, Self Tapping, 8-18 X 11/32, (4)				$ 9.22
NIA	316205500		Nut, Hex Flange, 3/8 10-32				$ 11.34
NIA	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 14.18
NIA	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.03
NIA	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
NIB	5304517383		Harness, Wiring, Mdl Lower Over		Appelez-nous	-
NIB	5303289910		Screw, Truss Sqdr, 8a X 1", 62*				$ 5.67
NIBA	316021119		Screw, Ab Nickel, 8-18 X 11/16		Appelez-nous	-
