SELECT A DIAGRAM

01 - Cover Sheet


02 - Control Panel

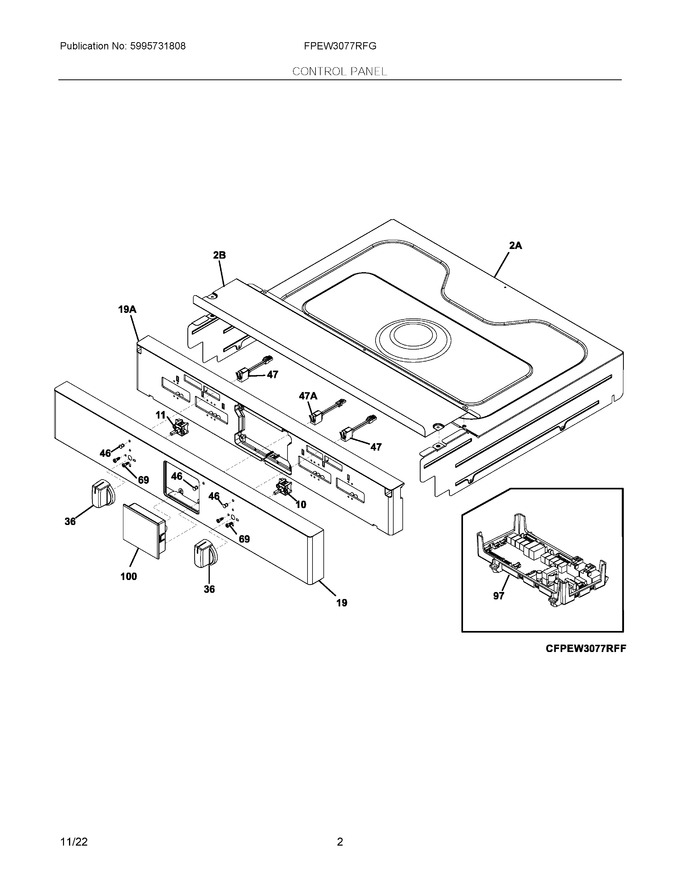

03 - Body


04 - Door


05 - Wiring Diagram


06 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	808843102		Potentiometer, Oven Temp				$ 148.13
11	5304493649		Potentiometer, Oven Mode   (Replaces: 808843101)			Immediately	$ 71.59
19	5304500602		Control Panel, Assembly, Stainless, Outer				$ 486.65
36	5304500593		Knob, Oven Control, Stainless				$ 142.57
46	316557300		Lens-light/lamp, Indicator, Clear			Immediately	$ 16.77
47	316022508		Light/lamp, Indicator, Blue, Oven				$ 27.30
69	5303288565		Screw, Truss Sqdr, 8-32 X 3/16, Switch Mtg				$ 3.12
97	316472807		Circuit Board, Assembly, Ovc1, W/housing			Immediately	$ 366.77
100A	808751526		Control Assembly, Complete, Hmi			Immediately	$ 530.00
19A	5304500594		Control Panel, Frame				$ 283.28
2A	5304521623		Shield, Wire, Top				$ 96.32
2B	5304520853		Cover, Control Access				$ 57.91
47A	316022510		Light/lamp, Indicator, Blue, Preheat				$ 31.10
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	5304514832		Harness, Wiring, Upper Oven, Hall Effect				$ 51.57
NI	5304517679		Harness, Wiring, Potentiometers, Single Oven				$ 40.19
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
NI	5304517673		Harness, Wiring, Communication, Ovc1 To Ovc2				$ 20.48
NIA	5303323129		Screw, 8 X 0.750		Appelez-nous	-
