SELECT A DIAGRAM

01 - Cover Sheet


02 - Cooktop, Burner And Grate Parts

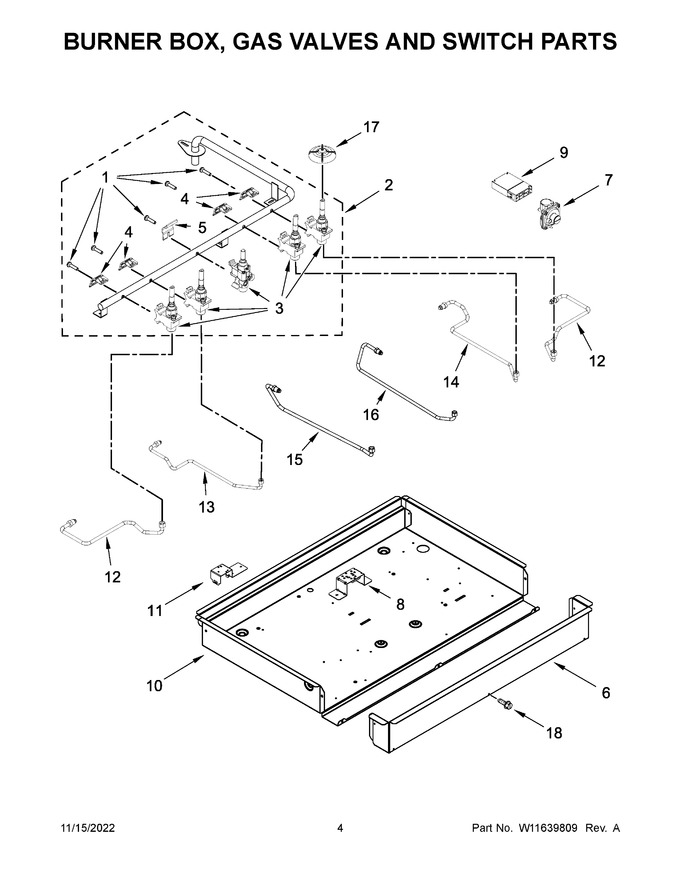

03 - Burner Box, Gas Valves And Switch Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8287057		Screw   (Replaces: W10743274)				$ 10.15
2	W10682073		Assembly, Pipe Manifold				$ 318.57
3	W11209791		Valve, Single (left Front)   (Replaces: W10717630)			Immediately	$ 236.01
4	8287055		Bracket, Single Valve				$ 65.54
5	8287056		Bracket, Dual Valve		Appelez-nous	-
6	W10716840		Panel, Front   (Replaces: W10705475)		Appelez-nous	-
7	W11087445		Regulator, Pressure   (Replaces: W10449143)			Immediately	$ 177.34
8	W10594429		Bracket, Orifice Holder				$ 20.00
9	WPW10475149		Module, Spark   (Replaces: W10475149)			Immediately	$ 161.15
10	W10710917		Box, Burner		Appelez-nous	-
11	W10545802		Bracket, Dual Burner				$ 19.29
12	W10545796		Tubing, Gas Burner (left Front)				$ 70.85
13	W10545797		Tubing, Gas Burner (left Rear)				$ 70.60
14	W10545798		Tubing, Gas Burner (right Rear)				$ 75.20
15	W10545801		Tubing, Gas Burner (center, Main)				$ 71.31
16	W10545800		Tubing, Gas Burner (center, Simmer)				$ 71.30
17	W11768651		Seal, Switch Shaft   (Replaces: W11507167)				$ 17.40
18	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.16
3A	W10617357		Valve, Single (left Rear)				$ 71.65
3B	W10717628		Valve, Single (right Rear)				$ 225.98
3C	W11199023		Valve, Dual (right Front And Center)   (Replaces: W10717629)				$ 134.24
NI	W11042467		Accessories, Spray, Stainless Steel Cleaning		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
