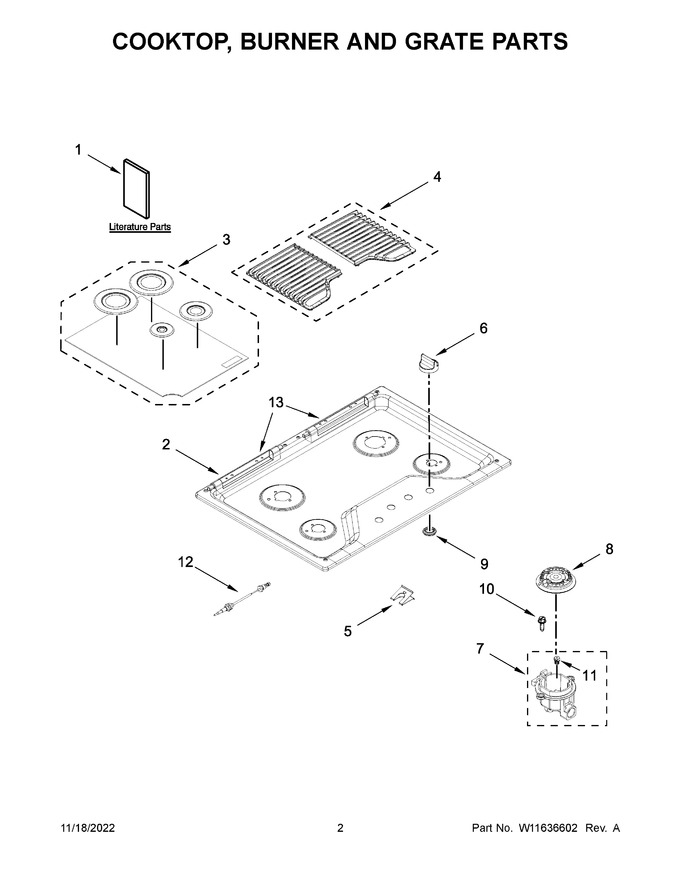

02 - Cooktop, Burner And Grate Parts
03 - Burner Box, Gas Valves And Switch Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11468901 | Owner's Manual |
|
- | |||||
| 2 | W11204005 | Cooktop (black) (Replaces: W11131854) |
|
- | |||||
| 3 | WPW10597129 | Kit, Burner Cap (black) (Replaces: W10597129) |
|
$ 109.15 | |||||
| 4 | W11214957 | Grate Kit (includes 2 Grates) (black) (Replaces: W11047087) |
|
$ 357.41 | |||||
| 5 | 8286863 | Spring, Electrode |
|
$ 65.93 | |||||
| 6 | W11397138 | Knobs, Cooktop (black) (Replaces: W11084622) |
|
$ 65.37 | |||||
| 7 | W10594399 | Holder, Orifice (5k) (right Rear) |
|
$ 33.26 | |||||
| 8 | WP8286813 | Head, Burner (left Rear) (Replaces: 8286813) |
|
$ 85.50 | |||||
| 9 | W11206740 | Grommet (black) (Replaces: W10625915) |
|
$ 7.81 | |||||
| 10 | W11676349 | Screw, Burner Rail (m4) (Replaces: 8286921) |
|
Immediately | $ 12.65 | ||||
| 11 | W10791082 | Orifice (right Rear) (Replaces: W10652711) |
|
$ 77.40 | |||||
| 12 | W11507531 | Wiring, Electrode (left Front, Left Rear, & Right Front) (Replaces: W11439331) |
|
$ 52.13 | |||||
| 13 | NP | Tub Assembly (not Serviced) |
|
- | |||||
| 11A | W10791073 | Orifice (center) (Replaces: W10609592) |
|
$ 80.11 | |||||
| 11B | W10652710 | Orifice (left Front & Left Rear) |
|
$ 23.37 | |||||
| 11C | W10791079 | Orifice (left Front) (Replaces: W10409144) |
|
$ 80.11 | |||||
| 12A | W11507532 | Wiring, Electrode (left Rear) (Replaces: W11439332) |
|
Immediately | $ 52.19 | ||||
| 1A | W11466948 | Quick Start Guide |
|
- | |||||
| 7A | W10609591 | Holder, Orifice (15k) (center) |
|
$ 62.03 | |||||
| 7B | W10594402 | Holder,orifice (9.1k) (right Rear) |
|
$ 61.77 | |||||
| 7C | W10597159 | Holder, Orifice (12k) (right Front) |
|
$ 62.10 | |||||
| 8A | WP8286815 | Head, Burner (left Front) (Replaces: 8286815) |
|
Immediately | $ 66.94 | ||||
| 8B | WP8286814 | Head, Burner (right Rear) (Replaces: 8286814) |
|
$ 106.79 | |||||
| NI | W10392003 | Cord, Power |
|
$ 138.57 | |||||
| NI | W10132200 | Relief, Strain |
|
- | |||||
| NI | 3801F93551 | Bracket, Tie Down |
|
- | |||||
| NI | WP3400015 | Screw, Grounding (Replaces: 3400015) |
|
$ 6.47 | |||||
| NI | W11205318 | Kit, Lp Conversion (Replaces: W11173306) |
|
$ 122.60 | |||||
| NI | W11561439 | Harness (switch), Main (Replaces: W10889264) |
|
$ 52.41 | |||||
| NI | 16515 | Clip, Harness (Replaces: 313438) |
|
$ 17.60 | |||||
| NI | NP | Tub Assembly (not Serviced) |
|
- | |||||
| NI | W11637584 | Harness, Spark Module (Replaces: W10878749) |
|
$ 28.58 | |||||
| NI | 7101P06260 | Screw (used For Tie Down Bracket) |
|
- |
