SELECT A DIAGRAM

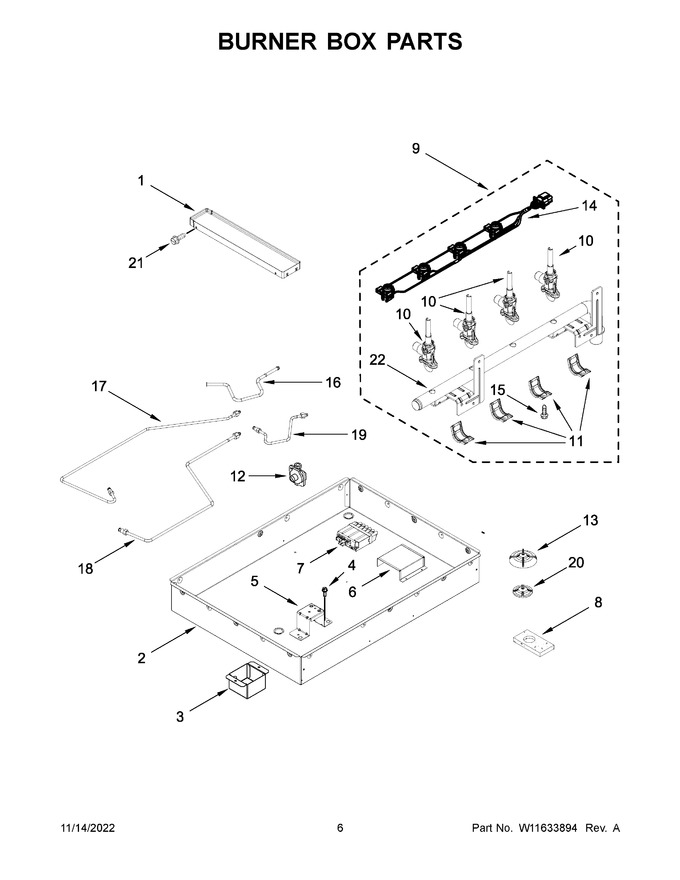

01 - Cover Sheet


02 - Cooktop Parts


03 - Blower Unit Parts


04 - Burner Box Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10235990		Tray, Spill				$ 73.51
2	NP		Tub Assembly (not Serviced)		Appelez-nous	-
3	W10258697		Cover, Blower Motor Harness			Immediately	$ 81.29
4	7101P42660		Screw		Appelez-nous	-
5	W10811211		Bracket, Hat		Appelez-nous	-
6	W10894861		Cover, Spark		Appelez-nous	-
7	WPW10475147		Module, Spark   (Replaces: W10475147)			Immediately	$ 214.42
8	7208P02460		Seal, Manifold Pipe Inlet		Appelez-nous	-
9	W11715952		Manifold Assembly   (Replaces: W11512355)				$ 248.18
10	W11511840		Valve (left Front And Right Rear)				$ 85.79
11	W10949105		Bracket, Saddle Valve				$ 19.50
12	W11087445		Regulator, Pressure   (Replaces: W10449143)			Immediately	$ 177.34
13	W11768651		Seal, Switch Shaft   (Replaces: W11507167)				$ 17.40
14	W11847086		Harness, Switch   (Replaces: W11537635)		Appelez-nous	-
15	W11577790		Screw		Appelez-nous	-
16	W11051229		Assembly, Tube (left Front)   (Replaces: W10826747)				$ 150.34
17	W11051231		Assembly, Tube (left Rear)   (Replaces: W10826748)		Appelez-nous	-
18	W11051232		Assembly, Tube (right Front)   (Replaces: W10826749)				$ 150.34
19	W11051234		Assembly, Tube (right Rear)   (Replaces: W10826750)				$ 150.34
20	W11508234		Seal, Downdraft Shaft		Appelez-nous	-
21	WPY706189		Screw   (Replaces: W11249635)			Immediately	$ 6.47
22	NP		Tub Assembly (not Serviced)		Appelez-nous	-
10A	W11511841		Valve (left Rear)		Appelez-nous	-
10B	W11511839		Valve (right Front)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
