01 - Cover Sheet

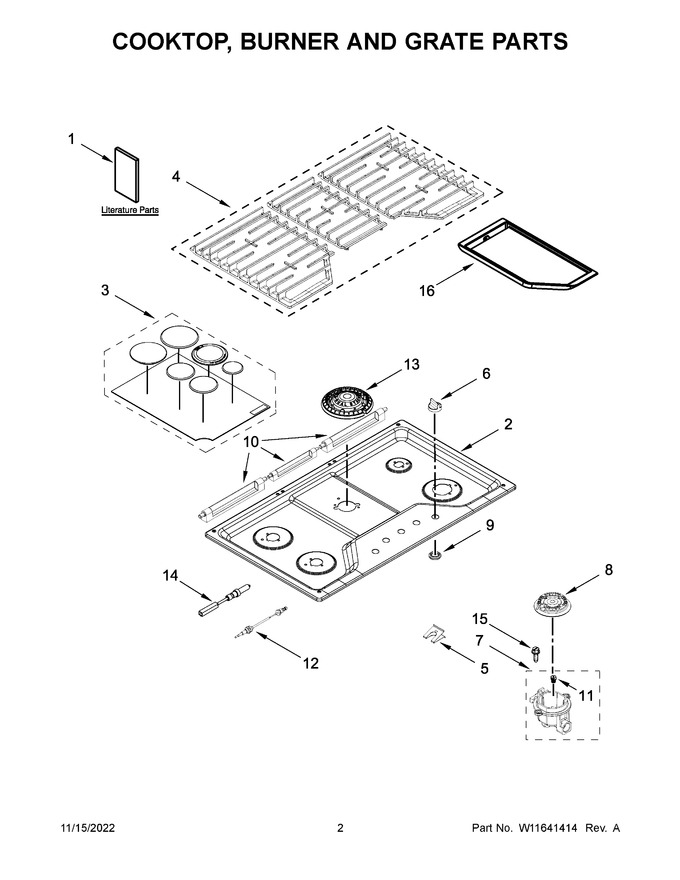

02 - Cooktop, Burner And Grate Parts
03 - Burner Box, Gas Valves And Switch Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11468901 | Owner's Manual |
|
- | |||||
| 2 | W11204397 | Cooktop (stainless) (Replaces: W11131862) |
|
$ 481.09 | |||||
| 3 | W10819916 | Kit, Burner Cap (black) (Replaces: W10597132) |
|
$ 86.58 | |||||
| 4 | W11204377 | Grate Kit (includes 3 Grates) (black) (Replaces: W11047088) |
|
$ 312.79 | |||||
| 5 | 8286863 | Spring, Electrode |
|
$ 65.93 | |||||
| 6 | W11204451 | Knobs, Cooktop (stainless) (Replaces: W11084624) |
|
Immediately | $ 70.30 | ||||
| 7 | W10597166 | Holder, Orifice (9.1k) (left Front & Left Rear) |
|
$ 63.25 | |||||
| 8 | WP8286814 | Head, Burner (right Rear) (Replaces: 8286814) |
|
$ 106.79 | |||||
| 9 | W11206740 | Grommet (black) (Replaces: W10625915) |
|
$ 7.81 | |||||
| 10 | W10826075 | Rear, Hinge-grate (stainless Model Only) |
|
$ 94.24 | |||||
| 11 | W10652710 | Orifice (left Front & Left Rear) |
|
$ 23.37 | |||||
| 12 | W11507531 | Wiring, Electrode (left Front, Left Rear, & Right Front) (Replaces: W11439331) |
|
$ 52.13 | |||||
| 13 | W10811599 | Head, Burner (center) (Replaces: W10611434) |
|
$ 186.16 | |||||
| 14 | W10852959 | Electrode, Stack (center) (Replaces: W10763330) |
|
Immediately | $ 66.09 | ||||
| 15 | W11699921 | Screw (Replaces: W10758282) |
|
$ 12.66 | |||||
| 16 | W10685483 | Griddle |
|
$ 83.15 | |||||
| 11A | W10791079 | Orifice (left Front) (Replaces: W10409144) |
|
$ 80.11 | |||||
| 11B | W10791082 | Orifice (right Rear) (Replaces: W10652711) |
|
$ 77.40 | |||||
| 11C | W11217198 | Orifice (center, Main) (Replaces: W10597160) |
|
- | |||||
| 11D | W11205318 | Orifice (center, Simmer) (Replaces: W10151362) |
|
$ 122.60 | |||||
| 12A | W11507532 | Wiring, Electrode (left Rear) (Replaces: W11439332) |
|
Immediately | $ 52.19 | ||||
| 1A | W11466948 | Quick Start Guide |
|
- | |||||
| 7A | W10594405 | Holder, Orifice (12k) (right Front) |
|
$ 69.87 | |||||
| 7B | W10594399 | Holder, Orifice (5k) (right Rear) |
|
$ 33.26 | |||||
| 7C | W11217186 | Holder, Orifice (18k) (center) (Replaces: W11168368) |
|
- | |||||
| 8A | WP8286813 | Head, Burner (left Rear) (Replaces: 8286813) |
|
$ 85.50 | |||||
| 8B | WP8286815 | Head, Burner (left Front) (Replaces: 8286815) |
|
Immediately | $ 66.94 | ||||
| NI | WP3400015 | Screw, Grounding (Replaces: 3400015) |
|
$ 6.47 | |||||
| NI | 8270P18860 | Tape, Foam |
|
- | |||||
| NI | W11637584 | Harness, Spark Module (Replaces: W10878749) |
|
$ 28.58 | |||||
| NI | 16515 | Clip, Harness (Replaces: 313438) |
|
$ 17.60 | |||||
| NI | NP | Tub Assembly (not Serviced) |
|
- | |||||
| NI | W11205318 | Kit, Lp Conversion (Replaces: W11173306) |
|
$ 122.60 | |||||
| NI | 7101P06260 | Screw (used For Tie Down Bracket) |
|
- | |||||
| NI | W10392003 | Cord, Power |
|
$ 138.57 | |||||
| NI | 9760045 | Seal, Foam |
|
$ 236.42 | |||||
| NI | W11561436 | Harness, Main (switch) (Replaces: W10889263) |
|
$ 55.30 | |||||
| NI | W10132200 | Relief, Strain |
|
- | |||||
| NI | 3801F93551 | Bracket, Tie Down |
|
- |
