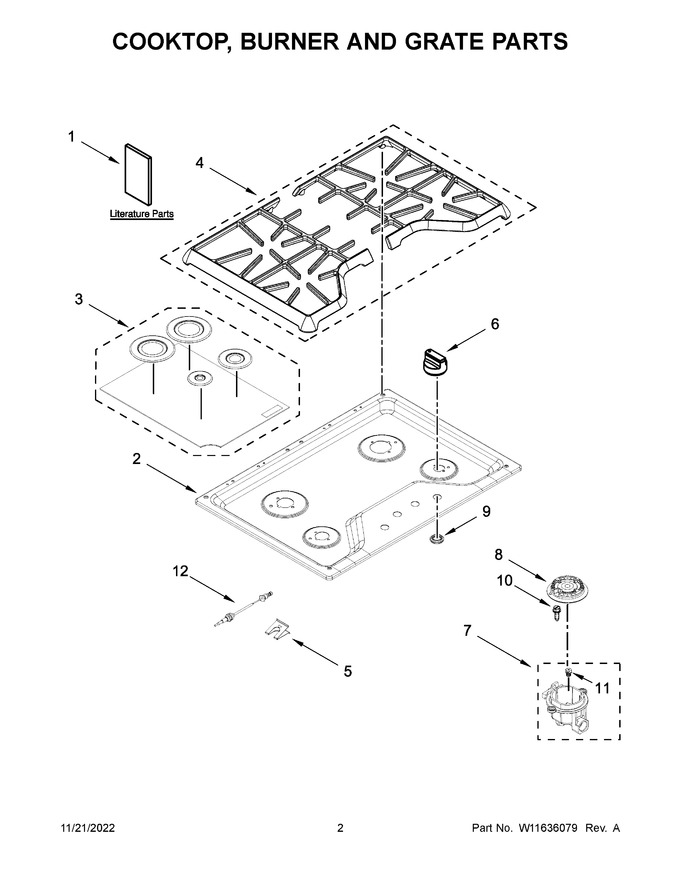

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11468901		Owner's Manual		Appelez-nous	-
2	W10597073		Cooktop (stainless)				$ 337.28
3	WPW10597129		Kit, Burner Cap (black)   (Replaces: W10597129)				$ 109.15
4	W11413073		Grate Assembly Includes Both Grates) (black)   (Replaces: W11241677)				$ 322.12
5	8286863		Spring, Electrode				$ 65.93
6	W11729014		Knobs, Cooktop (stainless)   (Replaces: W10853672)				$ 56.75
7	W10594399		Holder, Orifice (5k) (right Rear)				$ 33.26
8	WP8286813		Head, Burner (left Rear)   (Replaces: 8286813)				$ 85.50
9	W11206740		Grommet (black)   (Replaces: W10625915)				$ 7.81
10	W11676349		Screw, Burner Rail (m4)   (Replaces: 8286921)			Immediately	$ 12.65
11	W10791082		Orifice (right Rear)   (Replaces: W10652711)				$ 77.40
12	W11507531		Wiring, Electrode (left Front, Left Rear, & Right Front)   (Replaces: W11439331)				$ 52.13
11A	W10791073		Orifice (center)   (Replaces: W10609592)				$ 80.11
11B	W10791079		Orifice (left Front)   (Replaces: W10409144)				$ 80.11
11C	W10652710		Orifice (left Front & Left Rear)				$ 23.37
12A	W11507532		Wiring, Electrode (left Rear)   (Replaces: W11439332)			Immediately	$ 52.19
1A	W11466946		Quick Start Guide		Appelez-nous	-
7A	W10609591		Holder, Orifice (15k) (center)				$ 62.03
7B	W10597159		Holder, Orifice (12k) (right Front)				$ 62.10
7C	W10594402		Holder,orifice (9.1k) (right Rear)				$ 61.77
8A	WP8286815		Head, Burner (left Front)   (Replaces: 8286815)			Immediately	$ 66.94
8B	WP8286814		Head, Burner (right Rear)   (Replaces: 8286814)				$ 106.79
