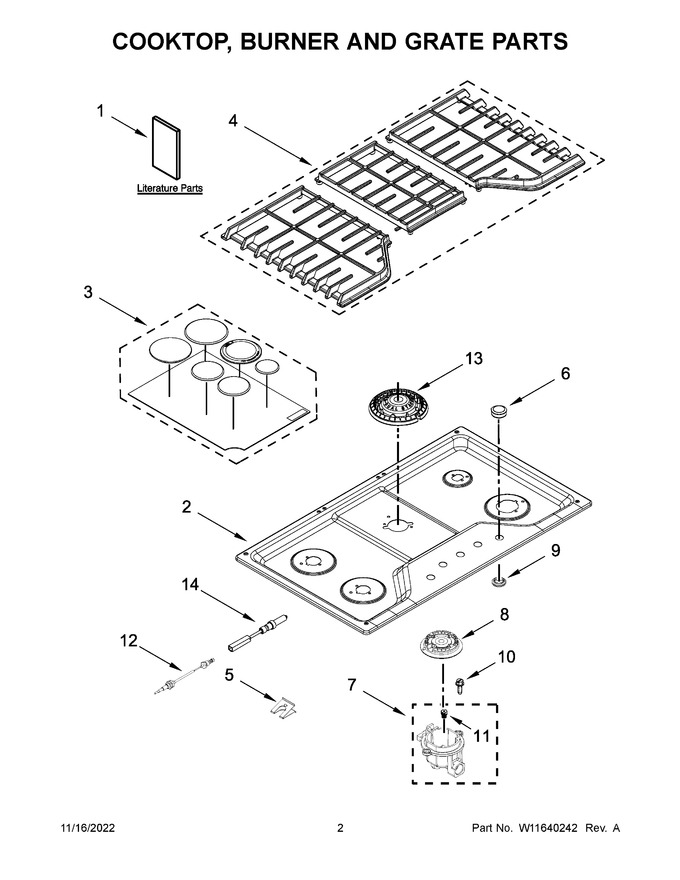

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11468901		Owner's Manual		Appelez-nous	-
2	W11176110		Cooktop   (Replaces: W10597068)		Appelez-nous	-
3	W10819916		Kit, Burner Cap (black)   (Replaces: W10597132)				$ 86.58
4	W11334474		Grate Kit (includes 3 Grates) (black)   (Replaces: W11241669)		Appelez-nous	-
5	8286863		Spring, Electrode				$ 65.93
6	WPW10545849		Knobs, Cooktop (stainless)   (Replaces: W10545849)			Immediately	$ 79.76
7	W10597166		Holder, Orifice (9.1k) (left Front & Left Rear)				$ 63.25
8	WP8286814		Head, Burner (right Rear)   (Replaces: 8286814)				$ 106.79
9	W11206740		Grommet (black)   (Replaces: W10625915)				$ 7.81
10	W11699921		Screw   (Replaces: W10758282)				$ 12.66
11	W10652710		Orifice (left Front & Left Rear)				$ 23.37
12	W11507531		Wiring, Electrode (left Front, Left Rear, & Right Front)   (Replaces: W11439331)				$ 52.13
13	W10811599		Head, Burner (center)   (Replaces: W10611434)				$ 186.16
14	W10852959		Electrode, Stack (center)   (Replaces: W10763330)			Immediately	$ 66.09
11A	W10791079		Orifice (left Front)   (Replaces: W10409144)				$ 80.11
11B	W10791082		Orifice (right Rear)   (Replaces: W10652711)				$ 77.40
11C	W10409146		Orifice (19k) (center, Main)		Appelez-nous	-
11D	W10652706		Orifice (center, Simmer)				$ 85.68
12A	W11507532		Wiring, Electrode (left Rear)   (Replaces: W11439332)			Immediately	$ 52.19
1A	W11466943		Quick Start Guide		Appelez-nous	-
7A	W10594405		Holder, Orifice (12k) (right Front)				$ 69.87
7B	W10594399		Holder, Orifice (5k) (right Rear)				$ 33.26
7C	W10639869		Holder, Orifice (19k) (center)		Appelez-nous	-
8A	WP8286815		Head, Burner (left Front)   (Replaces: 8286815)			Immediately	$ 66.94
8B	WP8286813		Head, Burner (left Rear)   (Replaces: 8286813)				$ 85.50
