01 - Cover Sheet


02 - Cooktop, Burner And Grate Parts

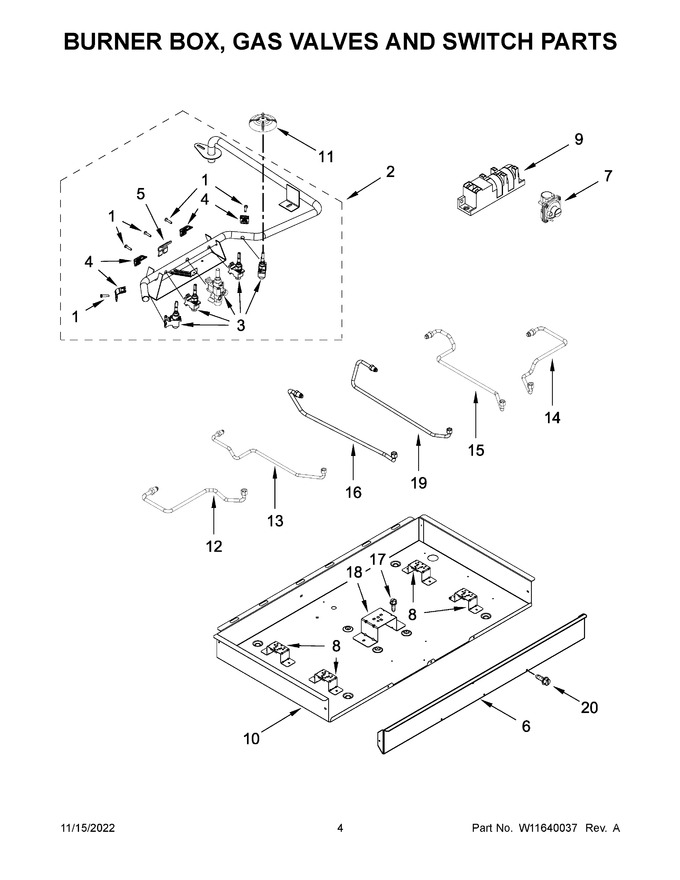

03 - Burner Box, Gas Valves And Switch Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8287057		Screw   (Replaces: W10743274)				$ 10.15
2	W10594395		Assembly, Pipe Manifold				$ 341.18
3	W11677628		Valve, Single (left Front)   (Replaces: W10594392)				$ 171.10
4	8287055		Bracket, Single Valve				$ 65.54
5	8287056		Bracket, Dual Valve		Appelez-nous	-
6	W10721889		Panel, Front   (Replaces: W10614950)		Appelez-nous	-
7	W11087445		Regulator, Pressure   (Replaces: W10449143)			Immediately	$ 177.34
8	W10594429		Bracket, Orifice Holder				$ 20.00
9	WPW10475149		Module, Spark   (Replaces: W10475149)			Immediately	$ 161.15
10	W10728415		Box, Burner		Appelez-nous	-
11	W11768651		Seal, Switch Shaft   (Replaces: W11507167)				$ 17.40
12	W10566294		Tubing, Gas Burner (left Front)		Appelez-nous	-
13	W10566295		Tubing, Gas Burner (left Rear)				$ 65.53
14	W10566299		Tubing, Gas Burner (right Front)				$ 63.70
15	W10566298		Tubing, Gas Burner Right Rear)				$ 66.73
16	W10566296		Tubing, Gas Burner (center)		Appelez-nous	-
17	W10443110		Screw			Immediately	$ 13.07
18	W10594430		Bracket, Orifice Holder				$ 26.81
19	W10566297		Tubing, Gas Burner (simmer) (center)		Appelez-nous	-
20	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.16
3A	W11256503		Valve, Single (left Rear And Center)   (Replaces: W10594391)			Immediately	$ 236.01
3B	W10859922		Valve, Single (right Front)   (Replaces: W10594393)				$ 69.40
3C	W11712403		Valve, Single (right Rear)   (Replaces: W10597156)			Immediately	$ 86.00
3D	W11246817		Valve, Dual (center)   (Replaces: W10594389)				$ 213.81
NI	W11042467		Accessories, Spray, Stainless Steel Cleaning		Appelez-nous	-
