01 - Cover Sheet

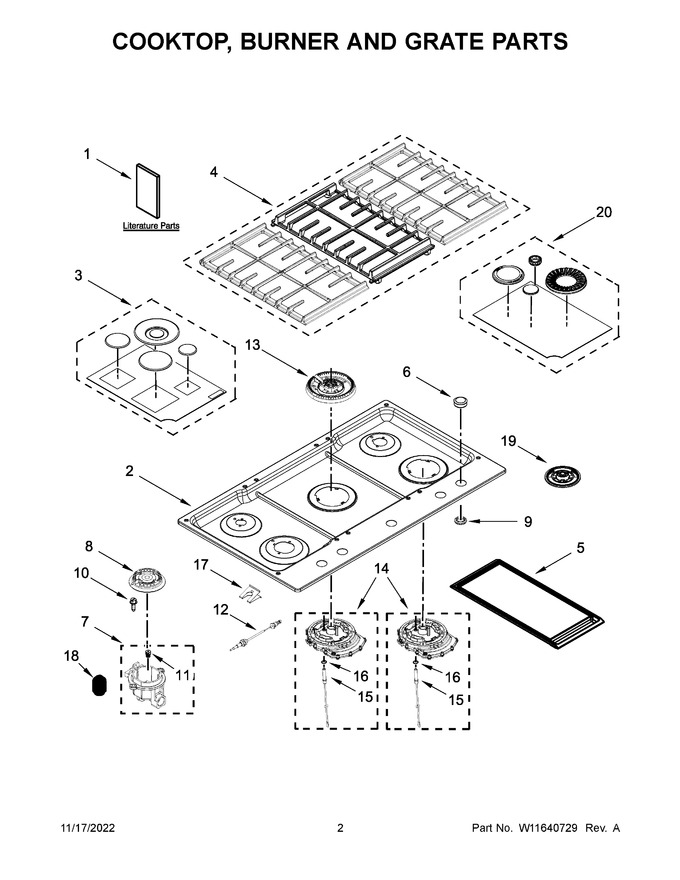

02 - Cooktop, Burner And Grate Parts


03 - Burner Box, Gas Valves And Switch Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11468901		Owner's Manual		Appelez-nous	-
2	W10722086		Cooktop			Immediately	$ 326.76
3	W10831828		Kit, Burner Cap (black (left Front, Left Rear, Center, Right Rear))   (Replaces: W10617346)			Immediately	$ 243.80
4	W11503033		Grate Kit (includes 3 Grates) (black)   (Replaces: W11108276)				$ 320.17
5	W11763721		Griddle   (Replaces: W10662080)				$ 91.28
6	WPW10545849		Knobs, Cooktop (stainless)   (Replaces: W10545849)			Immediately	$ 79.76
7	W10674920		Holder, Orifice (10k) (left Front And Right Front)				$ 34.67
8	WP8286815		Head, Burner (left Front)   (Replaces: 8286815)			Immediately	$ 66.94
9	W11117438		Bezel, Knob   (Replaces: W10593530)			Immediately	$ 49.44
10	W11676349		Screw, Burner Rail (m4)   (Replaces: 8286921)			Immediately	$ 12.65
11	W10674732		Orifice (10k) (left Front And Right Front)				$ 17.69
12	W10628302		Wiring, Electrode (left Front)				$ 71.93
13	W10836409		Spreader, Burner (center)   (Replaces: W10808715)			Immediately	$ 115.45
14	W11173537		Assembly, Burner Base (10k) (right Front)   (Replaces: W10617373)			Immediately	$ 166.96
15	W11721763		Electrode, Burner (right Front)   (Replaces: W10657995)			Immediately	$ 39.94
16	W10416057		O-ring				$ 66.97
17	8286863		Spring, Electrode				$ 65.93
18	W11690598		Spring, Torch Burner   (Replaces: W10554297)				$ 18.06
19	W11678108		Support, Flame Spreader (right Front)   (Replaces: W10631209)				$ 74.54
20	W10836474		Burner Cap Kit (includes Melt Cap) Black (right Front)   (Replaces: W10635601)			Immediately	$ 346.10
11A	W10151353		Orifice (left Rear)		Appelez-nous	-
11B	W11727825		Orifice (right Rear)   (Replaces: W10674728)				$ 28.48
12A	W11507532		Wiring, Electrode (left Rear)   (Replaces: W11439332)			Immediately	$ 52.19
12B	W10628303		Wiring, Electrode (right Rear)				$ 78.47
14A	W10625853		Assembly, Burner Base (17k)				$ 240.13
15A	W11610134		Electrode, Burner (center)   (Replaces: W10657994)			Immediately	$ 26.78
1A	W11466943		Quick Start Guide		Appelez-nous	-
1B	W10672375		Instructions, Undercounter Install		Appelez-nous	-
1C	W11591536		Tech Sheet		Appelez-nous	-
7A	W10674918		Holder, Orifice (6k) (left Rear)			Immediately	$ 28.02
7B	W10674919		Holder, Orifice (7k) (right Rear)				$ 30.08
8A	WP8286813		Head, Burner (left Rear)   (Replaces: 8286813)				$ 85.50
8B	WP8286814		Head, Burner (right Rear)   (Replaces: 8286814)				$ 106.79
NI	W10577591		Harness, Main				$ 83.10
NI	7208P02460		Seal, Manifold Pipe Inlet		Appelez-nous	-
NI	NP		Tub Assembly (not Serviced)		Appelez-nous	-
NI	W11684777		Insulation, Cooktop   (Replaces: W10617404)		Appelez-nous	-
NI	7101P06260		Screw (used For Tie Down Bracket)		Appelez-nous	-
NI	W11804912		Harness, Switch   (Replaces: W10619016)				$ 516.95
NI	W10392003		Cord, Power				$ 138.57
NI	W10853432		Kit, Lp Conversion   (Replaces: W10676662)			Immediately	$ 74.21
NI	W10132200		Relief, Strain		Appelez-nous	-
NI	3801F93551		Bracket, Tie Down		Appelez-nous	-
NI	WP3400015		Screw, Grounding   (Replaces: 3400015)				$ 6.47
