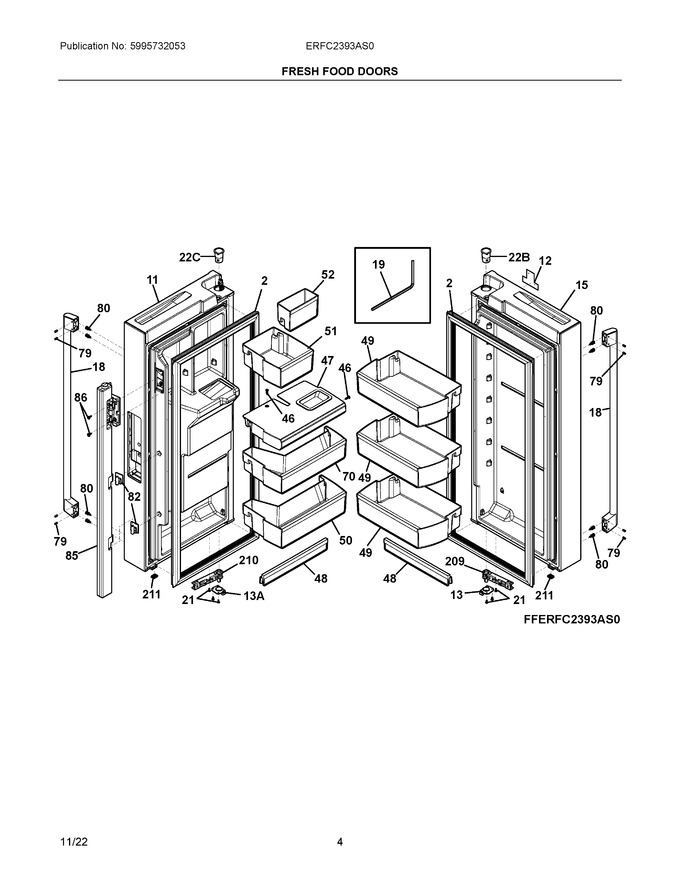

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 241778315 | Gasket, Door, Gray, Fresh Food, Magnetic (Replaces: 241778307) |
|
Immediately | $ 89.88 | ||||
| 11 | 5304533314 | Door Assembly, Fresh Food, Stainless, Lh |
|
$ 396.81 | |||||
| 12 | 5304532471 | Label Assembly, Nameplate, Chrome, Electrolux (Replaces: 5304524867) |
|
$ 18.27 | |||||
| 13 | 5304508039 | Door Stop, Assembly, Rh, W/bushing |
|
$ 22.81 | |||||
| 15 | 5304533313 | Door Assembly, Fresh Food, Stainless, Rh |
|
$ 269.85 | |||||
| 18 | 5304524807 | Handle Assembly, Stainless, W/set Screws |
|
Immediately | $ 182.18 | ||||
| 19 | 5304508270 | Wrench, Allen, Set Screw |
|
Immediately | $ 21.34 | ||||
| 21 | 241953902 | Screw, Quad Hilo, #8-18 X 0.380 |
|
Immediately | $ 17.11 | ||||
| 46 | 240383414 | Screw, 19.1mm, Grey |
|
- | |||||
| 47 | 5304533324 | Cover Bracket, Ice Chute, Gray |
|
- | |||||
| 48 | 5304532856 | Door Bin, Clip-on, Lower |
|
Immediately | $ 16.48 | ||||
| 49 | 5304536414 | Door Bin, Standard, Rh Door (Replaces: 5304532854) |
|
Immediately | $ 54.77 | ||||
| 50 | 5304538468 | Door Bin, 2 Liter, Lh Door (Replaces: 5304533091) |
|
$ 46.97 | |||||
| 51 | 5304536418 | Door Bin, Gallon Disp, Lh Door (Replaces: 5304533094) |
|
$ 28.22 | |||||
| 52 | 5304533093 | Door Bin, Slim Disp, Lh Door |
|
Immediately | $ 19.50 | ||||
| 70 | 5304533092 | Door Bin, Dairy |
|
Immediately | $ 24.68 | ||||
| 79 | 218755410 | Screw-set, 10-32 X .354 In |
|
- | |||||
| 80 | 218755504 | Screw, Shoulder, #10-ab, Handle Mounting |
|
Immediately | $ 18.60 | ||||
| 82 | 241779402 | Hinge-mullion, Gray, Upper/lower, Flipper |
|
$ 17.64 | |||||
| 85 | 5304530856 | Mullion Assembly, Flipper, Gray, W/heater |
|
$ 150.21 | |||||
| 86 | 242015001 | Screw, 8-18 X 1/2 |
|
Immediately | $ 16.30 | ||||
| 209 | 5304526201 | Rh Door Closer W/o Inner Washr |
|
Immediately | $ 84.92 | ||||
| 210 | 5304526202 | Lh Door Closer W/o Inner Washr |
|
Immediately | $ 98.34 | ||||
| 211 | 5304508077 | Bumper, Door, Bottom |
|
$ 12.13 | |||||
| 13A | 5304508038 | Door Stop, Assembly, Lh, W/bushing |
|
Immediately | $ 22.75 | ||||
| 22B | 241760403 | Bearing, Hinge, Top, Rh Door |
|
Immediately | $ 19.13 | ||||
| 22C | 241760401 | Bearing, Hinge, Top, Lh Door |
|
Immediately | $ 19.13 | ||||
| NI | 241806601 | Connector, Water Tube, 5/16 To 5/16, Straight (Replaces: 242103001) |
|
Immediately | $ 70.56 | ||||
| NIA | 5304533338 | Harness, Wiring, Door/dispenser |
|
- | |||||
| NIA | 5304508776 | Lock Washer, External Tooth, #8 |
|
$ 4.35 |
