01 - Cover Sheet

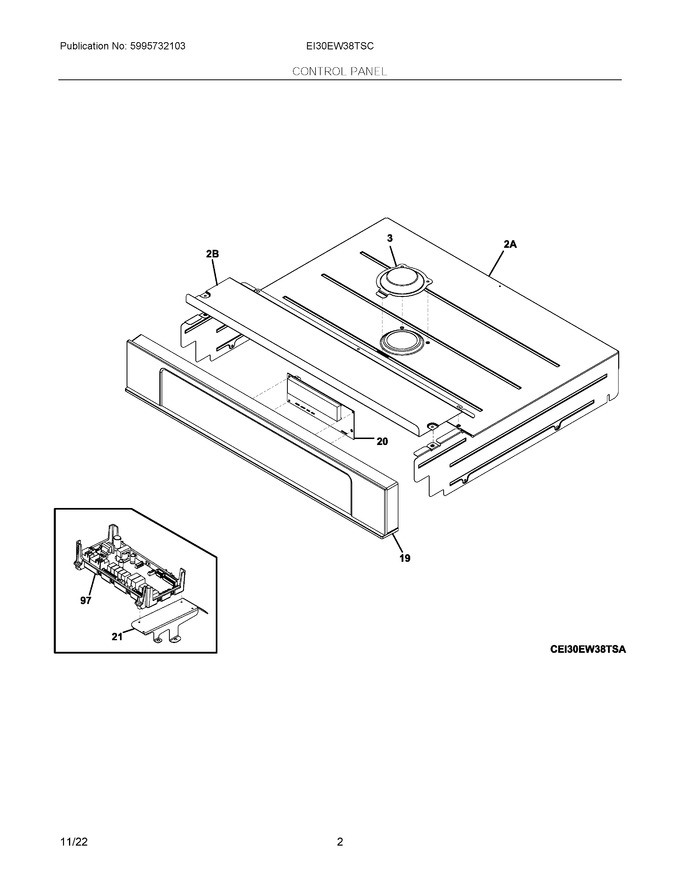

02 - Control Panel


03 - Body


04 - Door


05 - Wiring Diagram


06 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	808963801		Shield, Sensor, Hall Effect				$ 22.75
19	139037201		Panel, Control Mtg., Black, W/clips				$ 217.85
20	316474940		Controller, Electronic, Mars				$ 361.22
21	5304520558		Bracket, Ovc Support				$ 25.79
97	316472803		Circuit Board, Assembly, Ovc1, W/housing				$ 397.27
2A	5304521623		Shield, Wire, Top				$ 96.32
2B	5304520853		Cover, Control Access				$ 57.91
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
NI	5304514831		Harness, Grounding Wire				$ 11.38
NI	5304516246		Harness, Wiring, Communication, Control		Appelez-nous	-
NI	5304514832		Harness, Wiring, Upper Oven, Hall Effect				$ 51.57
NIA	131892100		Screw, Control Mtg, 6-32 X .25, (5)   (Replaces: 316524400)		Appelez-nous	-
NIA	5303323129		Screw, 8 X 0.750		Appelez-nous	-
