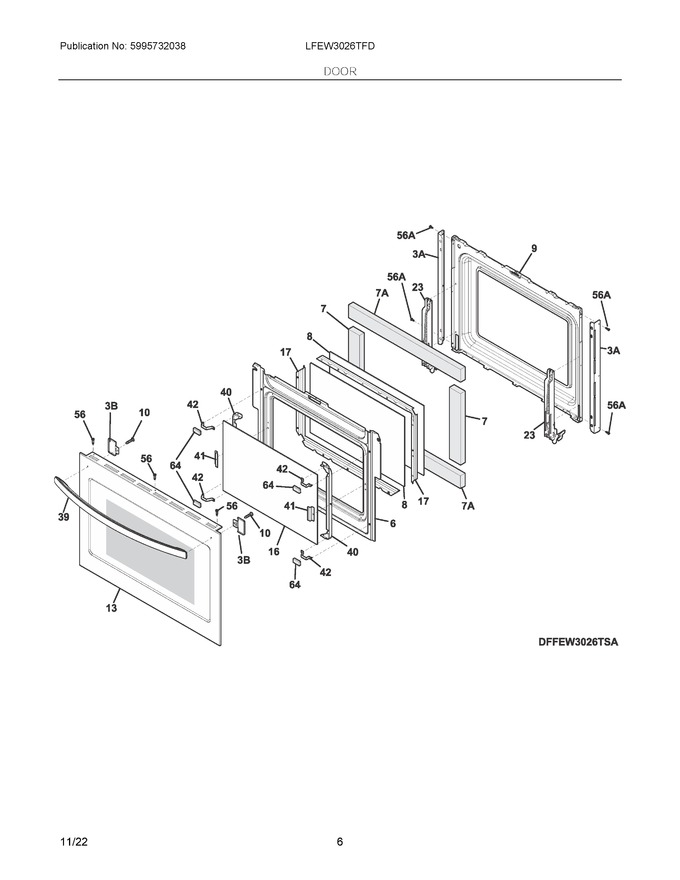

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	139006905		Baffle, Door				$ 121.34
7	318372017		Insulation, Door				$ 16.30
8	316117507		Glass, Oven Door, Inner		Appelez-nous	-
9	139000411		Liner, Oven Door				$ 152.43
10	5304414648		Screw, Handle Mtg.				$ 14.18
13	5304510984		Door Assembly, Outer, Stainless/black, W/trim		Appelez-nous	-
17	318264731		Spacer, Glass, (2)   (Replaces: 318264712)				$ 72.05
23	316575917		Hinge, Oven Door, Red				$ 67.33
39	140067504096		Handle, Door, Stainless   (Replaces: 5304507752)				$ 53.48
40	318242702		Bracket, Glass Holder, Door, (2)				$ 19.72
41	318370602		Bracket, Glass Panel, (2)				$ 13.65
42	318382302		Bracket, Glass Retainer, (4)				$ 50.81
56	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
64	318165800		Spacer, Glass, Foam				$ 17.72
3A	139014401		Trim, Oven Door, Black, Side, (2), Vented				$ 32.62
3B	318262104		Cover, Rear Door, Black, (2)				$ 24.99
56A	5303324184		Screw, 8-18 X 5/16, Black			Immediately	$ 14.18
7A	318372016		Insulation, Door				$ 17.72
NIA	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 14.18

    View Diagram in Separate Window       Print Part List
