SELECT A DIAGRAM

01 - Cover Sheet

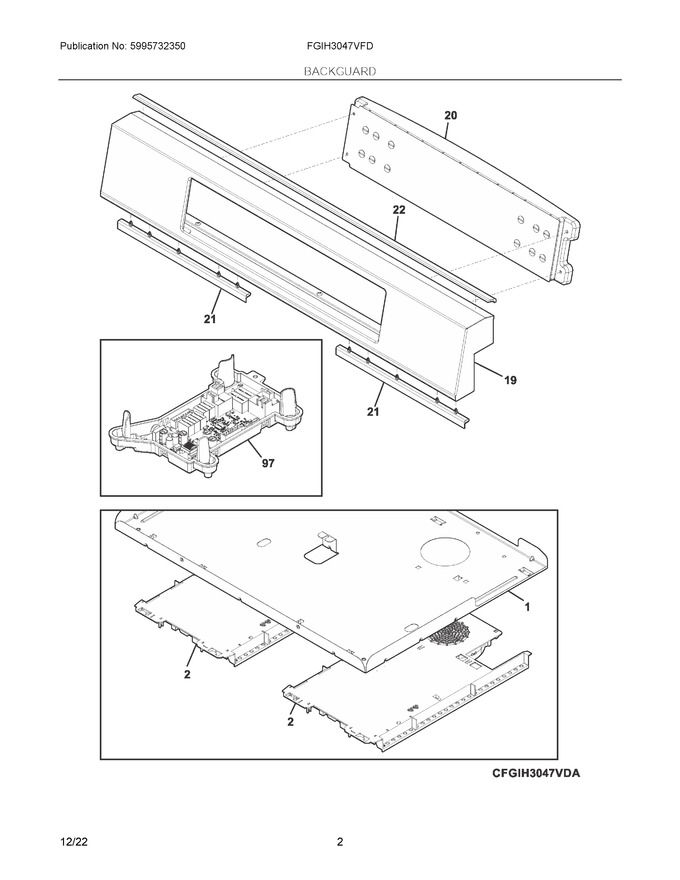

02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304519431		Panel, Mounting, Induction				$ 122.28
2	5304521812		Generator Board, Power, Induction			Immediately	$ 337.82
19	5304521811		Control Panel, Front, Stainless			Immediately	$ 294.05
20	5304522786		Control, Black, Es502i			Immediately	$ 482.55
21	5304521020		Seal, Control Panel			Immediately	$ 72.48
22	5304521042		Bumper Guard, Assembly, Magnetic				$ 245.71
97	5304516862		Board, Pc, Oven Relay			Immediately	$ 330.67
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	5304521814		Harness, Wiring, Communication, Ui To Generator			Immediately	$ 47.78
NI	5304520393		Spacer, Foam Block, 2" X 1", W/adhesive		Appelez-nous	-
NI	5304514353		Harness, Generator, Low Voltage				$ 138.78
NI	5304519440		Harness, Wiring, Induction, W/ferrite Core				$ 35.65
NIA	5304521041		Insulator, Controller, W/adhesv Tape				$ 14.41
NIA	5303289910		Screw, Truss Sqdr, 8a X 1", 62*				$ 5.67

    View Diagram in Separate Window       Print Part List
