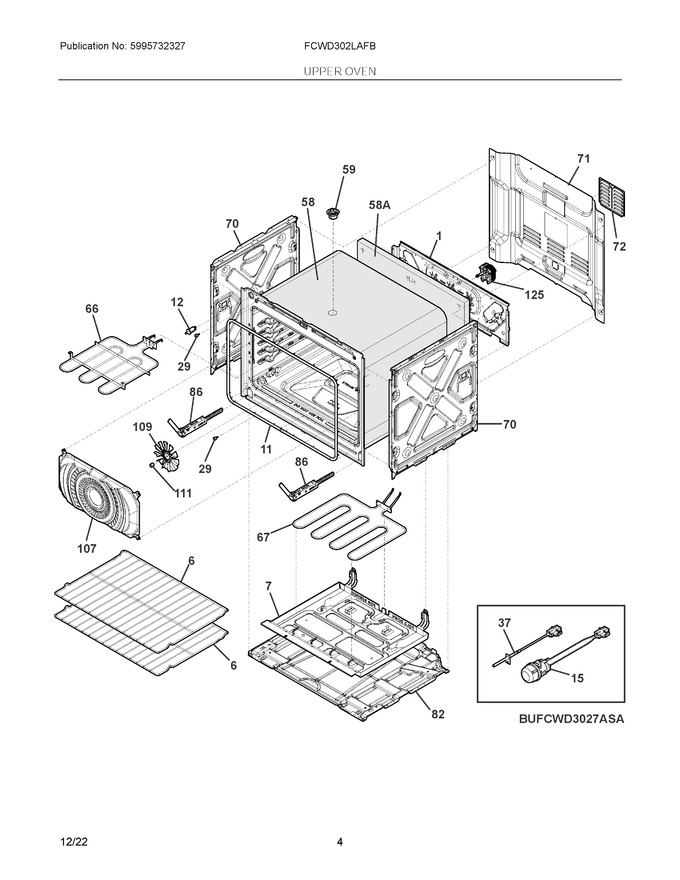

03 - Upper Oven
04 - Lower Oven
05 - Doors
06 - Wiring Diagram
07 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304526336 | Panel, Rear |
|
- | |||||
| 6 | 5304531722 | Rack, Oven, Wire, Flat (Replaces: 5304526378) |
|
Immediately | $ 51.05 | ||||
| 7 | 5304528326 | Tray, Hidden Bake |
|
$ 52.33 | |||||
| 11 | 5304526242 | Seal, Oven Door, Charcoal |
|
Immediately | $ 144.09 | ||||
| 12 | 808136601 | Switch, Light, Door (Replaces: 318394802) |
|
Immediately | $ 44.04 | ||||
| 15 | 5304533411 | Lamp Assembly, Halogen, G9, 40w, 120v (Replaces: 5304530343) |
|
Immediately | $ 36.50 | ||||
| 29 | 316517600 | Bumper, Front, Main |
|
$ 12.05 | |||||
| 37 | 5304526310 | Probe, Oven Sensor |
|
Immediately | $ 43.17 | ||||
| 58 | 140293845016 | Insulation, Oven, Wrapper (Replaces: 5304530429) |
|
- | |||||
| 59 | 140169214032 | Tube, Vent Catalyst (Replaces: 5304526450) |
|
- | |||||
| 66 | 5304536847 | Element, Broil, 6 Pass, 4000w, 240v (Replaces: 5304526370) |
|
Immediately | $ 71.42 | ||||
| 67 | 140156196176 | Elelemnt, Hidden Bake, 8 Pass, 2500w, 240v (Replaces: 5304526373) |
|
Immediately | $ 56.89 | ||||
| 70 | 5304526314 | Panel, Side, Exterior |
|
$ 70.83 | |||||
| 71 | 5304526329 | Shield, Rear Wire |
|
$ 78.87 | |||||
| 72 | 5304526588 | Cover, Convection Mtr |
|
$ 17.01 | |||||
| 82 | 5304530352 | Panel, Exterior, Bottom, Upper Oven |
|
- | |||||
| 86 | 5304526280 | Hinge, Door, Pink, 2 Spring |
|
Immediately | $ 58.39 | ||||
| 107 | 5304526364 | Cover, Fan, Midnight Black, Convection |
|
- | |||||
| 109 | 5304525455 | Blade, Fan, Convection |
|
$ 14.41 | |||||
| 111 | 561231207 | Nut, Fan Blade |
|
Immediately | $ 18.35 | ||||
| 125 | 5304526375 | Motor, Convection Fan |
|
$ 163.80 | |||||
| 58A | 5304530428 | Insulation, Oven, Rear |
|
$ 19.19 | |||||
| NI | 5304532100 | Harness, Ds Mdl, Upper Oven, Hall Effect |
|
- | |||||
| NI | 5304526497 | Harness, Wiring, Door Switch, To Ovc/macs |
|
- | |||||
| NI | 5304526232 | Screw, T-20 St, 8-24 X 3/8 |
|
- | |||||
| NI | 387872717 | Screw, M4, 2 X 10, Black, W/washer |
|
- | |||||
| NI | 387856311 | Screw, 4.2 X 10 |
|
$ 3.03 | |||||
| NI | 5304530450 | Anti Tip, Kit |
|
$ 37.76 | |||||
| NI | 5304526499 | Harness, Wiring, Ds Mdl, Upper Oven, Hall Effect |
|
$ 91.31 | |||||
| NIA | 5304526532 | Screw, Hinge Mtg., M4.2 X 9.5 |
|
$ 3.03 | |||||
| NIA | 5304526234 | Screw, M4, 2 X 10, Sheet Metal, Black |
|
$ 3.03 |
