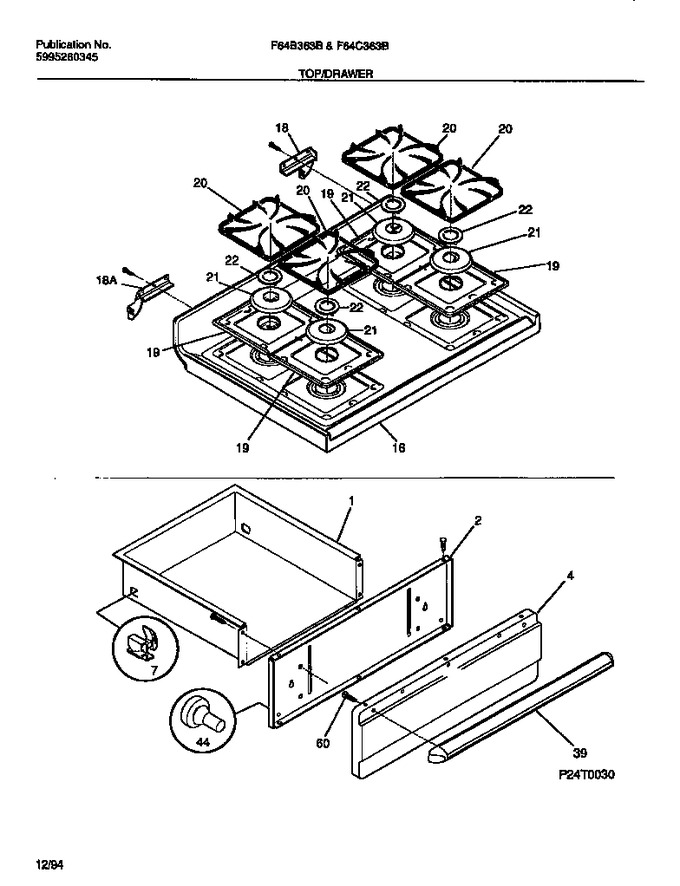

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316011501		Drawer-utility		Appelez-nous	-
2	3131975		Shield-panel		Appelez-nous	-
4	316056207		Panel-drawer, Black		Appelez-nous	-
4	08067785		Screw, Hex Washer Head, 8, 18(ab) X 1/2 (non-illustrat		Appelez-nous	-
7	3051163		Glide,drawer ,rear			Immediately	$ 19.41
16	5303271892		Gusset-top Mtg, Lh (non-illustrated)		Appelez-nous	-
16	5303291521		Main, Top Black		Appelez-nous	-
16	5303271891		Gusset-top Mtg, Rh (non-illustrated)		Appelez-nous	-
18	5303288567		Screw, 8-18 X 3/8, (4) (non-illustrated)		Appelez-nous	-
18	5303273062		Hinge-main Top (rh)		Appelez-nous	-
19	316011401		Pan-burner				$ 20.58
20	316025400		Grate, (4)		Appelez-nous	-
22	316011001		Cap-burner, Cast, Black, (4)		Appelez-nous	-
39	316026100		Handle-drawer, Black		Appelez-nous	-
44	3131903		Bumper				$ 55.36
60	5303288574		Scrw, Truss Head, 8, 10 X 3/8		Appelez-nous	-
*66528	5303281584		Screw, Truss Head, 8-18 X 1/2		Appelez-nous	-
18A	5303273063		Hinge-main Top (lh)				$ 48.41
