SELECT A DIAGRAM

03 - Backguard


04 - Burner


05 - Body


06 - Top/drawer


07 - Door

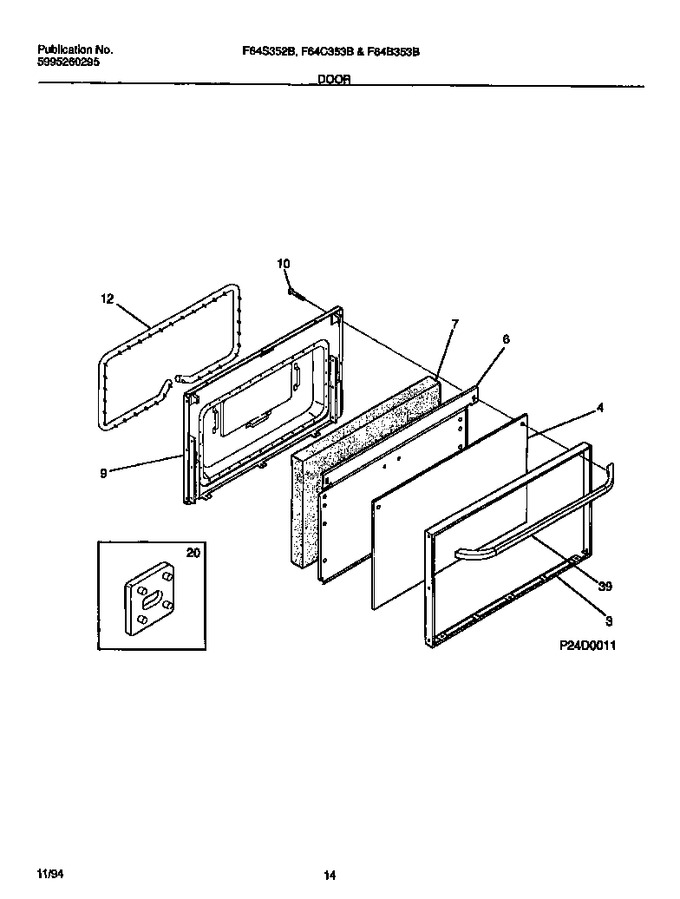

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	316067804		Trim-oven Door, White		Appelez-nous	-
4	316019718		Glass-oven Door, White		Appelez-nous	-
5	5303209513		Glass-oven Door, Inner		Appelez-nous	-
6	5303271181		Shield-insulation, White		Appelez-nous	-
7	5303209514		Insulation-oven Door		Appelez-nous	-
9	316066603		Liner-oven Door		Appelez-nous	-
10	316001002		Screw-oven Door, Washer Head, 10-24 X 1.81				$ 14.89
12	5303131601		Seal-oven Door				$ 374.63
14	3131361		Reflector, Aluminum Foil		Appelez-nous	-
15	5303209510		Bracket-glass Mtg		Appelez-nous	-
16	5303209512		Glass-oven Door, Heat Barrier, (2)				$ 150.41
17	5303209517		Spacer-glass		Appelez-nous	-
18	5303211085		Seal-rope, 0.25 Dia				$ 44.00
19	316067600		Collar-glass Mtg		Appelez-nous	-
20	316055100		Spacer-handle, (2)		Appelez-nous	-
39	316060201		Handle-door, White, Oven		Appelez-nous	-
*83931	316065300		Plate Warning/caution		Appelez-nous	-
*83932	3203618		Rivet-pop, Warning-plate		Appelez-nous	-
*83933	5303212671		Screw, Cr Pan Hd Sems, 8, 32(bp) X 1		Appelez-nous	-
*83934	5303212762		Screw,8-18 X 1/2		Appelez-nous	-
*83935	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16				$ 6.62
14A	3131360		Reflector, Aluminum Foil		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
