SELECT A DIAGRAM

01 - Cover


02 - Control Panel


03 - Door


04 - Tub


05 - Motor & Pump


06 - Frame


07 - Rack

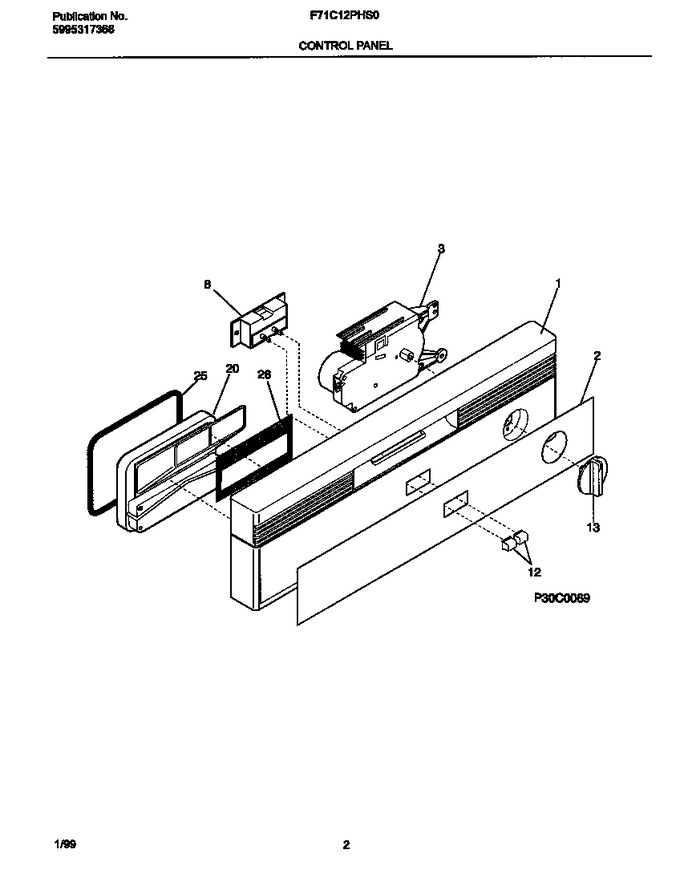

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154222601		Panel-control, White		Appelez-nous	-
2	154355501		Insert-control Pnl		Appelez-nous	-
3	154347702		Timer		Appelez-nous	-
8	154215301		Switch-selector,2 Button		Appelez-nous	-
12	154236502		Pushbutton,white ,(2)				$ 52.03
13	154338301		Knob-timer,white				$ 75.60
20	154327301		Vapor Chamber Assy		Appelez-nous	-
25	154303901		Gasket-vent		Appelez-nous	-
26	154229201		Seal-chamber				$ 12.81
*49200	154779601		Screw,(3) ,timer Mtg.   (Replaces: 5303318719)				$ 1.42
*49201	154242201		Shield-switch		Appelez-nous	-
*49202	154283801		Screw,w/ Foam Washer ,(3)		Appelez-nous	-
*49203	154283901		Screw,8-10 ,3/8 Phillips				$ 7.56
*49204	154347902		Harness-wiring		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
