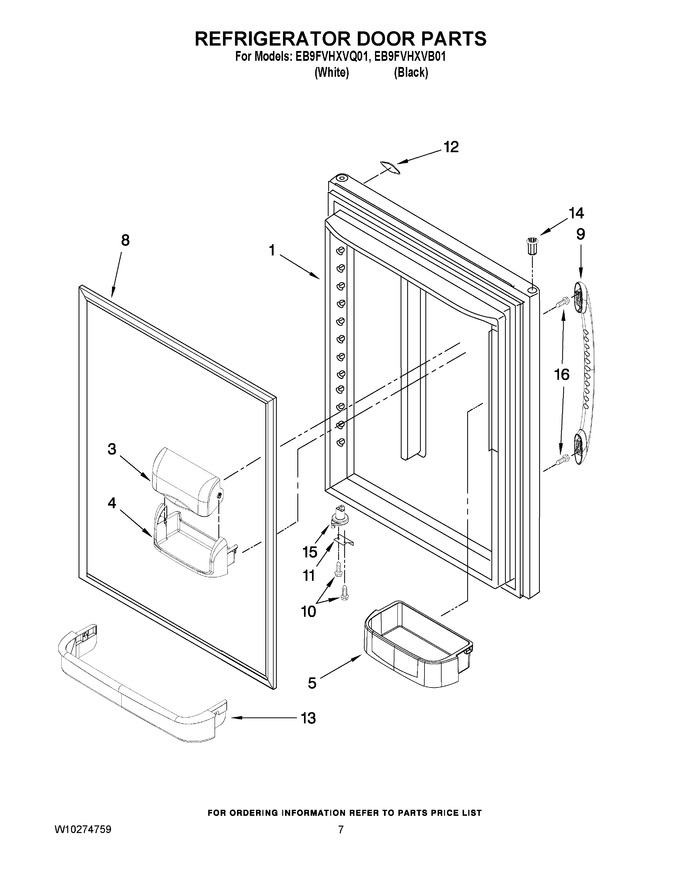

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 12658573WQ | Door, Refrigerator (white) |
|
$ 697.77 | |||||
| 1 | 12658573BQ | Door, Refrigerator (black) |
|
- | |||||
| 3 | WP67003637 | Door, Dairy (Replaces: 12804701SP) |
|
Immediately | $ 74.40 | ||||
| 4 | WP67001279 | Tray, Dairy (Replaces: 12369502SP) |
|
Immediately | $ 79.21 | ||||
| 5 | 12737802 | Bucket, Tall (1) |
|
- | |||||
| 5 | 67001141 | Bucket, Small (2) (Replaces: 12557202) |
|
Immediately | $ 71.02 | ||||
| 5 | WP67001021 | Bucket, Medium (2) (Replaces: 12557204V) |
|
$ 76.46 | |||||
| 8 | WPW10436245 | Gasket, Door (black) (Replaces: W10164031) |
|
Immediately | $ 326.12 | ||||
| 8 | WPW10443309 | Gasket, Door (white) (Replaces: W10164030) |
|
Immediately | $ 328.72 | ||||
| 9 | WPW10222984K | Handle, Door (white) (Replaces: W10222984) |
|
$ 184.91 | |||||
| 9 | W11351146 | Handle, Door (black) (Replaces: W10222985) |
|
$ 170.17 | |||||
| 10 | WP98165 | Handle, Door (screw) (Replaces: 12990504) |
|
$ 7.71 | |||||
| 11 | W11708403 | Stop, Door (black) (Replaces: 10447112) |
|
$ 13.28 | |||||
| 11 | 12968202W | Stop, Door (white) (Replaces: 10447111) |
|
$ 62.36 | |||||
| 12 | WP2213265 | Nameplate (Replaces: 2255121) |
|
Immediately | $ 83.86 | ||||
| 13 | 12690501 | Retainer, Ref Door |
|
$ 41.75 | |||||
| 14 | 67004978 | Bushing (4) (black) (Replaces: 10961006B) |
|
Immediately | $ 19.89 | ||||
| 14 | WP67004977 | Bushing (4) (white) (Replaces: 10961006W) |
|
$ 7.38 | |||||
| 15 | WP67003639 | Closure, Door (black) (Replaces: 12028505B) |
|
Immediately | $ 81.29 | ||||
| 15 | WP67003638 | Closure, Door (white) (Replaces: 12028505W) |
|
Immediately | $ 7.34 | ||||
| 16 | WP12992902 | Screw-flat-(2) (Replaces: 12992902) |
|
$ 10.72 |
