SELECT A DIAGRAM

01 - Cover


02 - Control Panel


03 - Door


04 - Tub


05 - Motor & Pump


06 - Frame


07 - Racks

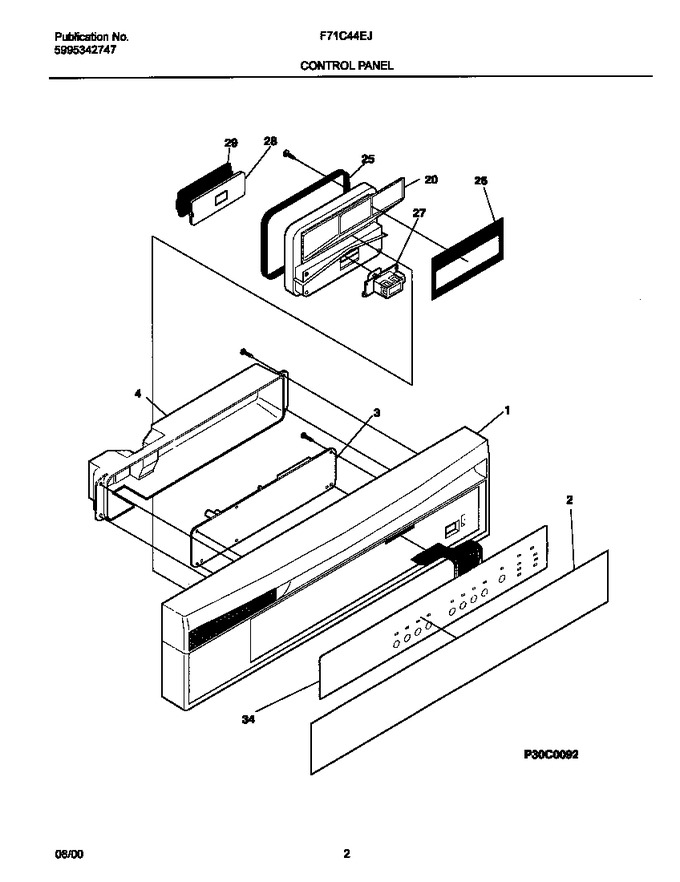

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154378403		Panel-control,black		Appelez-nous	-
2	154379903		Insert-control Pnl,black		Appelez-nous	-
3	154362807		Control				$ 96.86
4	154287802		Cover-control		Appelez-nous	-
20	154283701		Vapor Weldment Assy		Appelez-nous	-
25	154303901		Gasket-vent		Appelez-nous	-
26	154229201		Seal-chamber				$ 12.81
27	154226701		Actuator,wax				$ 65.46
28	154226901		Valve-vent		Appelez-nous	-
29	154226403		Gasket-valve		Appelez-nous	-
34	154378601		Keypad,9pad		Appelez-nous	-
*14240	154200401		Screw, 6-10 X 3/8, Pan Plask				$ 8.56
*14241	154753101		Thermister   (Replaces: 154227501)			Immediately	$ 24.80
*14242	154283901		Screw,8-10 ,3/8 Phillips				$ 7.56
*14243	154371001		Wiring Harness		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
