SELECT A DIAGRAM
New Model Search:

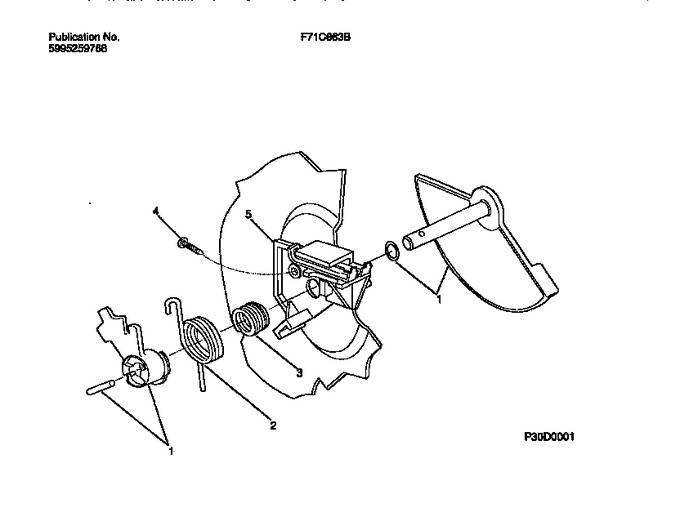

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303943106 | Lid-dispenser W/cam Spiral Pin And O-ring-white |
|
- | |||||
| 2 | 5300805227 | Cam Spring |
|
$ 32.50 | |||||
| 3 | 5300806567 | Cam Compr Spring |
|
$ 38.98 | |||||
| 4 | 154041001 | Screw |
|
- | |||||
| 5 | 154183301 | B-metal Assy |
|
- |
